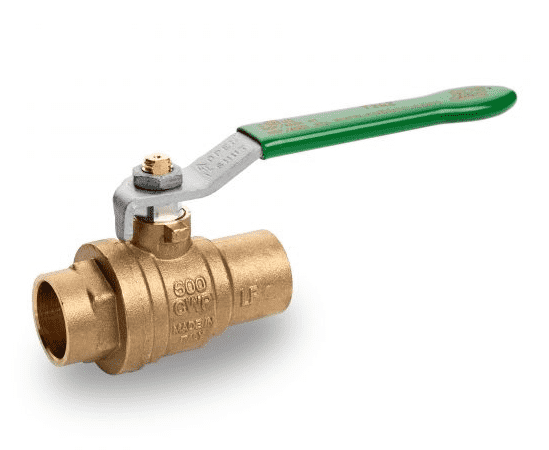

T242I00 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 2" Solder End x 2" Solder End | with Green Steel Handle | Brass | Pack of 3

Save $36.63

$329.67

$329.67 - $329.67

$329.67

$293.04

$293.04 - $293.04

$293.04

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T242 Series - Solder Ends x Solder Ends - with Green Steel Handle

Package Quantity: 3 Units

Quantity

Specifications for Variant SKU: T242I00 RuB Inc \| 3 \|
Shape (Orientation):	Straight
Ends Configuration:	2in Solder End, 2in Solder End, Some Ends Match
Material(s):	Lead Free Brass
Seal Material(s):	PTFE
Special Properties:	Lead Free

Quality:
Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water 24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated lead free brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated lead free brass body and cap sealed with Loctite® or equivalent thread sealant
Stem:
Pure PTFE adjustable packing gland and reinforced PTFE washer for lower torque and easy maintenance Blowout-proof unplated lead free brass stem
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
Solder-end ANSI B16.18 female by female connections
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
Glass filled PTFE seals AISI 430 stainless steel handle Custom design
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D (Nominal)	D (Actual)	DN	I	L	G	A	H
T242D00	1/2"	1/2"	0.6271"	0.590"	0.492"	2.244"	1.181"	3.937"	1.695"
T242E00	3/4"	3/4"	0.8771"	0.787"	0.748"	2.854"	1.476"	4.724"	1.988"
T242F00	1"	1"	1.1279"	0.984"	0.905"	3.346"	1.673"	4.724"	2.153"
T242G00	1-1/4"	1-1/4"	1.3779"	1.259"	0.964"	3.819"	1.909"	6.220"	2.988"
T242H00	1-1/2"	1-1/2"	1.6279"	1.574"	1.102"	4.488"	2.244"	6.220"	3.236"
T242I00	2"	2"	2.1279"	1.968"	1.338"	5.433"	2.716"	6.220"	3.500"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
