T25-6X6 Couplamatic T Series Coupling - JIC Seat - 45° Female Swivel - 3/8" Hose ID - 9/16x18 Thread Size

T25-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 9/16x18 Thread Size JIC Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

Save $10.92 Save $10.92
$98.28
$98.28 - $98.28
$98.28
$87.36
$87.36 - $87.36
$87.36

Couplamatic Systems Inc.
T Series - JIC/SAE Dual Seat - 45° Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: T25-6X6 Couplamatic | 10 |
Series: T Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

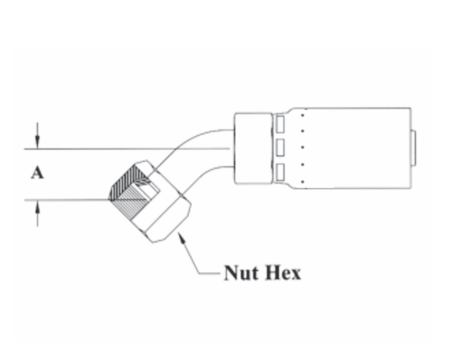

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T25-4X4 1/4" 1/4" 7/16x20 0.47" 9/16" 04E-684
T25-5X6* 5/16" 3/8" 9/16x18 0.59" 11/16" 05E-686
T25-6X6* 3/8" 3/8" 9/16x18 0.59" 11/16" 06E-686
T25-8X8 1/2" 1/2" 3/4x16 0.71" 7/8" 08E-688
T25-8X10 1/2" 5/8" 7/8x14 0.84" 1" 08E-690
T25-12X12* 3/4" 3/4" 1-1/16x12 1.12" 1-1/4" 12E-692
T25-16X16* 1" 1" 1-5/16x12 1.15" 1-1/2" 16E-696

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
