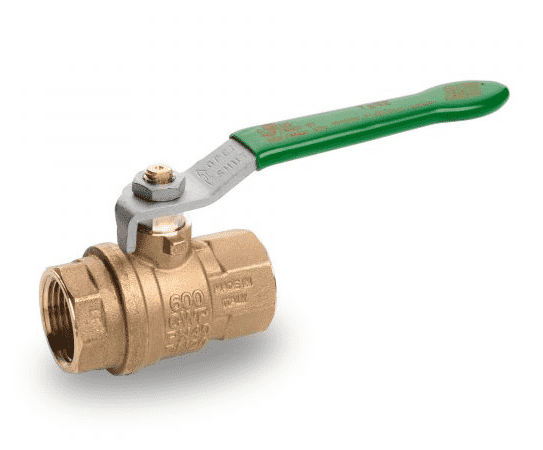

T292G41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Green Steel Handle | Brass | Pack of 8

Save $165.84

$580.45

$580.45 - $580.45

$580.45

$414.61

$414.61 - $414.61

$414.61

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T292 Series - Female NPT x Female NPT - with Green Steel Handle

Package Quantity: 8 Units

Specifications for Variant SKU: T292G41 RuB Inc \| 8 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s):	Lead Free Brass
Seal Material(s):	PTFE
Special Properties:	Lead Free

Quality:
Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water 24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Chrome plated lead free brass ball for longer life
Stem:
Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Blowout-proof unplated lead free brass stem
Sealing:
Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
Custom design Pure PTFE seals
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	CH
T292B41	1/4"	1/4"	0.314"	0.472"	1.771"	0.885"	3.228"	1.563"	0.787"
T292C41	3/8"	3/8"	0.393"	0.472"	1.771"	0.885"	3.228"	1.563"	0.787"
T292D41	1/2"	1/2"	0.590"	0.610"	2.322"	1.161"	3.937"	1.695"	0.984"
T292E41	3/4"	3/4"	0.787"	0.669"	2.519"	1.259"	4.724"	1.988"	1.220"
T292F41	1"	1"	0.984"	0.826"	3.188"	1.594"	4.724"	2.153"	1.574"
T292G41	1-1/4"	1-1/4"	1.259"	0.905"	3.661"	1.830"	6.220"	2.988"	1.929"
T292H41	1-1/2"	1-1/2"	1.574"	0.905"	4.015"	2.007"	6.220"	3.236"	2.125"
T292I41	2"	2"	1.968"	1.043"	4.763"	2.381"	6.220"	3.500"	2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
