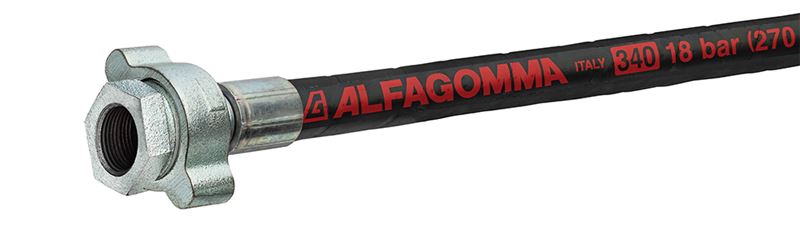

T340AA100GFGFX50 Alfagomma by Kuriyama | T340AA Series | Steam Hose Assembly | 1" ID | 1" Female GJ x 1" Male NPT | 270 PSI | Black | 50ft Length

T340AA100GFGFX50 Alfagomma by Kuriyama | T340AA Series | Steam Hose Assembly | 1" ID | 1" Female GJ x 1" Male NPT | 270 PSI | Black | 50ft Length

Save $99.77 Save $99.77
$518.01
$518.01 - $518.01
$518.01
$418.24
$418.24 - $418.24
$418.24

Alfagomma® by Kuriyama
T340AA / T340AH Series | EPDM Braided Steam Hose Assembly

A Steam hose, for use with high pressure industrial equipment cleaning at refineries, processing plants and shipyards.

Can be used in the thawing and de-icing of outdoor pipes and other equipment during cold temperatures.
Specifications for Variant SKU: T340AA100GFGFX50 Kuriyama
Brand: Alfagomma
Series: T340AA Series
Hose Color(s): Black
Internal Diameter: 1in
Tubing Construction: EPDM
Cover Construction: EPDM
Shape (Orientation): Straight
Special Properties: Conductive Tube, Pin Pricked Hose Cover

SPECIFICATIONS

Applications: Saturated steam applications up to 270 PSI and 410°F.
High pressure industrial equipment cleaning at refineries, processing plants and shipyards.
Thawing and de-icing of outdoor pipes and other equipment during cold temperatures.
Hose Ends: Crimped-On Fittings Tube: Black, conductive EPDM.
Reinforcement: Single high tensile steel wire braid (1/2" Size), Two high tensile steel wire braids (3/4" to 3"). Cover: Red or black pin-pricked EPDM.
Service Temperature Range: Saturated Steam. Constant Operation: -40°F (-40 °C) to +410°F (+210°C)
Intermittent to +450°F (+232°C)		 Coupling Suggestions: -
Branding: -
Other Features:
  • Crimped on Fittings - The preferred connection method. Reduces risk of leaks and blowouts versus bolt clamps, which require repeated tightening in order to maintain a tight seal.
T340AA Series | Black Cover
Part Number ID Max. Rec.*
Working Pressure		 Min. Bend
Radius
at 68°F		 Fitting Type Length Weight
(in) (mm) PSI (in) (lbs/each)
T340AA050MPMPX50 1/2" 13mm 270 PSI 5" Male NPT x Male NPT 50ft 14.11 lbs/ft
T340AA075GFGFX50 3/4" 19mm 270 PSI 7-1/2" Female GJ x Female GJ 50ft 33.51 lbs/ft
T340AA075GFMPX25 3/4" 19mm 270 PSI 7-1/2" Female GJ x Male NPT 25ft 12.60 lbs/ft
T340AA075GFMPX50 3/4" 19mm 270 PSI 7-1/2" Female GJ x Male NPT 50ft 25.10 lbs/ft
T340AA075MPMPX50 3/4" 19mm 270 PSI 7-1/2" Male NPT x Male NPT 50ft 26.01 lbs/ft
T340AA100GFGFX50 1" 25mm 270 PSI 10" Female GJ x Male NPT 50ft 38.14 lbs/ft
T340AA100GFMPX25 1" 25mm 270 PSI 10" Female GJ x Male NPT 25ft 15.40 lbs/ft
T340AA100GFMPX50 1" 25mm 270 PSI 10" Female GJ x Male NPT 50ft 30.60 lbs/ft
T340AA100MPMPX50 1" 25mm 270 PSI 10" Male NPT x Male NPT 50ft 32.41 lbs/ft
T340AA200GFMPX25 2" 51mm 270 PSI 20" Female GJ x Male NPT 25ft 40.34 lbs/ft
T340AA200GFMPX50 2" 51mm 270 PSI 20" Female GJ x Male NPT 50ft 76.06 lbs/ft

* *10:1 Safety Factor

T340AH Series | Red Cover
Part Number ID Max. Rec.*
Working Pressure		 Min. Bend
Radius
at 68°F		 Fitting Type Length Weight
(in) (mm) PSI (in) (lbs/each)
T340AH075GFMPX25 3/4" 19mm 270 PSI 7-1/2" Female GJ x Male NPT 25ft 12.60 lbs/ft
T340AH075GFMPX50 3/4" 19mm 270 PSI 7-1/2" Female GJ x Male NPT 50ft 25.40 lbs/ft
T340AH100GFMPX25 1" 25mm 270 PSI 10" Female GJ x Male NPT 25ft 15.50 lbs/ft
T340AH100GFMPX50 1" 25mm 270 PSI 10" Female GJ x Male NPT 50ft 31.10 lbs/ft

* *10:1 Safety Factor
