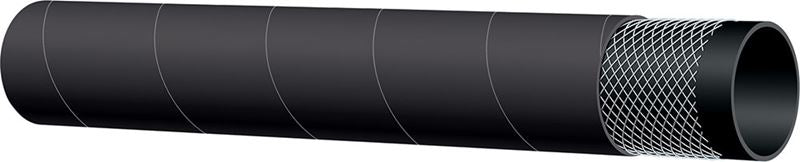

T352AA500X12.6 Alfagomma by Kuriyama | T352AA Series | Radiator Hose | 5" ID | 5.55" OD | 75 PSI | Black | 12.5ft

T352AA500X12.6 Alfagomma by Kuriyama | T352AA Series | Radiator Hose | 5" ID | 5.55" OD | 75 PSI | Black | 12.5ft Length

Save $69.11 Save $69.11
$314.16
$314.16 - $314.16
$314.16
$245.05
$245.05 - $245.05
$245.05

Kuriyama of America Inc.
Alfagomma | T352AA Series | 75 PSI Radiator Hose

A steam and hot water radiator hose.

Package Quantity: 13 Foot

Specifications for Variant SKU: T352AA500X12.6 Kuriyama | 12.6 |
Brand: Alfagomma
Series: T352AA Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.55in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Radiator hose. SAE Rating: -
Other Ratings: - Tube: Black EPDM.
Reinforcement: High tensile textile cords. Cover: Black EPDM - heat, abrasion and ozone resistant.
Service Temperature Range: -40°F (-40°C) to +248°F (+120°C) Coupling Suggestions: -
Branding: ALFAGOMMA - ITALY - T-352 RADIATOR - DIN 73411 - dia mm / in. SAE 20R1-D2 (in yellow letters)
Part Number
12.5ft Length		 Part Number
200ft Length		 ID OD Max Rec.
Working Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T352AA050X12.6 T352AA050X200 1/2" 13mm 0.83" 21mm 75 PSI 0.19 lbs/ft
T352AA071X12.6 - 23/32" 18mm 1.02" 26mm 75 PSI 0.24 lbs/ft
T352AA078X12.6 - 13/16" 20mm 1.10" 28mm 75 PSI 0.26 lbs/ft
T352AA087X12.6 T352AA087X200 7/8" 22mm 1.18" 30mm 75 PSI 0.28 lbs/ft
T352AA100X12.6 T352AA100X200 1" 25mm 1.30" 33mm 75 PSI 0.32 lbs/ft
T352AA112X12.6 T352AA112X200 1-1/8" 28mm 1.42" 36mm 75 PSI 0.34 lbs/ft
T352AA118X12.6 - 1-3/16" 30mm 1.50" 38mm 75 PSI 0.37 lbs/ft
T352AA125X12.6 T352AA125X200 1-1/4" 32mm 1.57" 40mm 75 PSI 0.39 lbs/ft
T352AA137X12.6 - 1-3/8" 35mm 1.69" 43mm 75 PSI 0.42 lbs/ft
T352AA150X12.6 T352AA150X200 1-1/2" 38mm 1.89" 48mm 75 PSI 0.57 lbs/ft
T352AA162X12.6 T352AA162X200 1-5/8" 42mm 2.05" 52mm 75 PSI 0.63 lbs/ft
T352AA175X12.6 T352AA175X200 1-3/4" 45mm 2.17" 55mm 75 PSI 0.66 lbs/ft
T352AA189X12.6 T352AA189X200 1-7/8" 48mm 2.28" 58mm 75 PSI 0.70 lbs/ft
T352AA200X12.6 T352AA200X200 2" 51mm 2.40" 61mm 75 PSI 0.75 lbs/ft
T352AA225X12.6 - 2-1/4" 57mm 2.64" 67mm 75 PSI 0.82 lbs/ft
T352AA238X12.6 - 2-3/8" 60mm 2.76" 70mm 75 PSI 0.86 lbs/ft
T352AA250X12.6 - 2-1/2" 63mm 2.87" 73mm 75 PSI 0.90 lbs/ft
T352AA275X12.6 - 2-3/4" 70mm 3.15" 80mm 75 PSI 0.97 lbs/ft
T352AA300X12.6 - 3" 76mm 3.39" 86mm 75 PSI 1.04 lbs/ft
T352AA315X12.6 - 3-1/8" 80mm 3.54" 90mm 75 PSI 1.10 lbs/ft
T352AA354X12.6 - 3-9/16" 90mm 4.02" 102mm 75 PSI 1.36 lbs/ft
T352AA400X12.6 - 4" 102mm 4.49" 114mm 75 PSI 1.52 lbs/ft
T352AA450X12.6 - 4-1/2" 116mm 5.00" 127mm 75 PSI 1.69 lbs/ft
T352AA500X12.6 - 5" 127mm 5.55" 141mm 75 PSI 2.16 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
