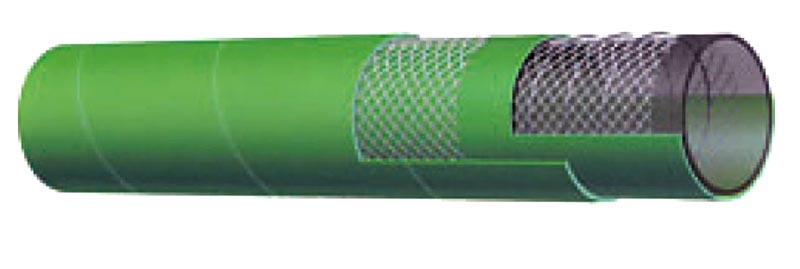

T505OG100X100 Alfagomma by Kuriyama | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose | 1" ID | 1.46" OD | 240 PSI | Green | 100ft Length

Save $225.86

$990.79

$990.79 - $990.79

$990.79

$764.93

$764.93 - $764.93

$764.93

Kuriyama of America Inc.
Alfagomma | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose

For the suction and transfer service for a variety of chemicals and solvents.

Will handle 90% of existing chemicals.

Package Quantity: 100 Foot

Specifications for Variant SKU: T505OG100X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T505OG Series
Hose Color(s):	Green
Internal Diameter:	1in
Outer Diameter:	1.46in
Tubing Construction:	XLPE
Cover Construction:	EPDM

SPECIFICATIONS

Application:	Suction and transfer service for a variety of chemicals and solvents. Will handle 90% of existing chemicals.
Other Ratings:	-	Tube:	Transparent XLPE (cross-linked polyethylene).
Reinforcement:	High tensile textile cords with flexible steel helix wire.	Cover:	Green EPDM - abrasion and ozone resistant.
Service Temperature Range:	Normal recommended operating temperature is -22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
Branding:	ALFAGOMMA - ITALY T505 16 BAR (240 PSI) - XLPE CHEMICAL - S & D (in orange letters)
Important:	IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T505 HOSE BE FLUSHED OUT AFTER EVERY USE.

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
T505OG075X100	3/4"	19mm	1.22"	31mm	240 PSI	27 in Hg	7-1/2"	0.46 lbs/ft
T505OG100X100	1"	25mm	1.46"	37mm	240 PSI	27 in Hg	9"	0.56 lbs/ft
T505OG150X100	1-1/2"	38mm	1.97"	50mm	240 PSI	27 in Hg	13-1/4"	0.76 lbs/ft
T505OG200X100	2"	51mm	2.48"	63mm	240 PSI	27 in Hg	16-1/4"	1.00 lbs/ft
T505OG300X100	3"	76mm	3.62"	92mm	240 PSI	24 in Hg	20-3/4"	1.83 lbs/ft
T505OG400X100	4"	102mm	4.65"	118mm	240 PSI	24 in Hg	26-1/2"	2.50 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
