T505OG300X100 Alfagomma by Kuriyama | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose | 3" ID | 3.62" OD | 240 PSI | Green | 100ft Length

T505OG300X100 Alfagomma by Kuriyama | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose | 3" ID | 3.62" OD | 240 PSI | Green | 100ft Length

Save $772.11 Save $772.11
$2,903.91
$2,903.91 - $2,903.91
$2,903.91
$2,131.80
$2,131.80 - $2,131.80
$2,131.80

Kuriyama of America Inc.
Alfagomma | T505OG Series | XLPE Acid / Chemical Suction & Discharge Hose

For the suction and transfer service for a variety of chemicals and solvents.

Will handle 90% of existing chemicals.

Package Quantity: 100 Foot

Specifications for Variant SKU: T505OG300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T505OG Series
Hose Color(s): Green
Internal Diameter: 3in
Outer Diameter: 3.62in
Tubing Construction: XLPE
Cover Construction: EPDM

SPECIFICATIONS

Application: Suction and transfer service for a variety of chemicals and solvents. Will handle 90% of existing chemicals.

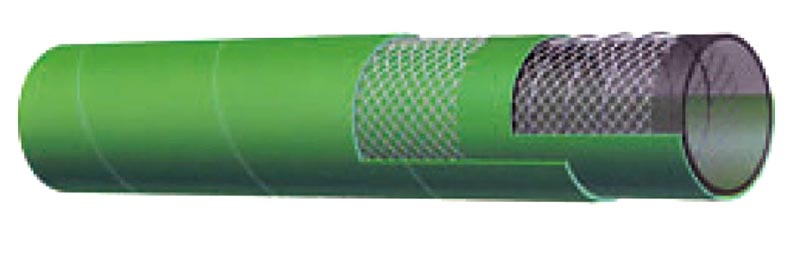

Other Ratings: - Tube: Transparent XLPE (cross-linked polyethylene).
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Green EPDM - abrasion and ozone resistant.
Service Temperature Range: Normal recommended operating temperature is -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
Branding: ALFAGOMMA - ITALY T505 16 BAR (240 PSI) - XLPE CHEMICAL - S & D (in orange letters)
Important: IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T505 HOSE BE FLUSHED OUT AFTER EVERY USE.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T505OG075X100 3/4" 19mm 1.22" 31mm 240 PSI 27 in Hg 7-1/2" 0.46 lbs/ft
T505OG100X100 1" 25mm 1.46" 37mm 240 PSI 27 in Hg 9" 0.56 lbs/ft
T505OG150X100 1-1/2" 38mm 1.97" 50mm 240 PSI 27 in Hg 13-1/4" 0.76 lbs/ft
T505OG200X100 2" 51mm 2.48" 63mm 240 PSI 27 in Hg 16-1/4" 1.00 lbs/ft
T505OG300X100 3" 76mm 3.62" 92mm 240 PSI 24 in Hg 20-3/4" 1.83 lbs/ft
T505OG400X100 4" 102mm 4.65" 118mm 240 PSI 24 in Hg 26-1/2" 2.50 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
