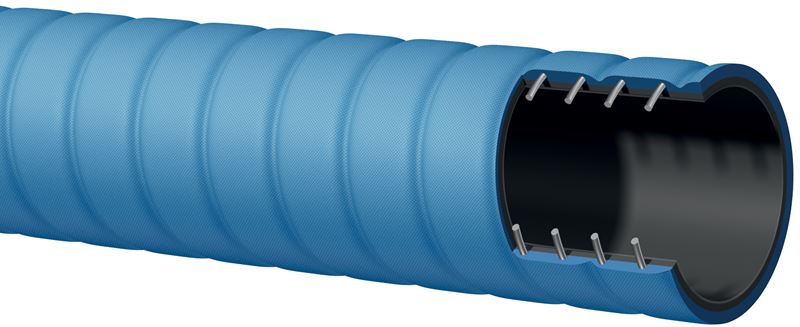

T519OE400X100 Alfagomma by Kuriyama | T519OE Series | Corrugated UHMWPE Acid / Chemical Suction & Discharge Hose | 4" ID | 4.57" OD | 240 PSI | Blue | 100ft Length

Save $978.70

$4,569.70

$4,569.70 - $4,569.70

$4,569.70

$3,591.00

$3,591.00 - $3,591.00

$3,591.00

Kuriyama of America Inc.
Alfagomma | T519OE Series | Corrugated UHMWPE Acid / Chemical Suction & Discharge Hose

Suitable for use with DEF.

Suction and transfer service for a variety of chemicals and acids.

Will handle 98% of existing chemicals.

Package Quantity: 100 Foot

Specifications for Variant SKU: T519OE400X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T519OE Series
Hose Color(s):	Blue
Internal Diameter:	4in
Outer Diameter:	4.57in
Tubing Construction:	Ultra High Molecular Weight Polyethylene
Cover Construction:	EPDM

Application:	Suction and transfer service for a variety of chemicals and acids. Will handle 98% of existing chemicals.
Other Ratings:	-	Tube:	Transparent UHMWPE (Ultra High Molecular Weight Polyethylene).
Reinforcement:	Synthetic textile cords with flexible steel helix wire.	Cover:	Blue EPDM - abrasion and ozone resistant.
Service Temperature Range:	Normal recommended operating temperature is -22°F (-30°C) to +200°F (+93°C)	Coupling Suggestions:	Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
Branding:	ALFAGOMMA - ITALY T519 16 BAR (240 PSI) - UHMWPE CHEMICAL - S & D (in orange letters)
Important:	IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T509 HOSE BE FLUSHED OUT AFTER EVERY USE.

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
T519OE200X100	2"	51mm	2.48"	63mm	240 PSI	27 in Hg	6"	94 lbs/ft
T519OE300X100	3"	76mm	3.54"	90mm	240 PSI	27 in Hg	9"	169 lbs/ft
T519OE400X100	4"	102mm	4.57"	116mm	240 PSI	27 in Hg	12"	275 lbs/ft
