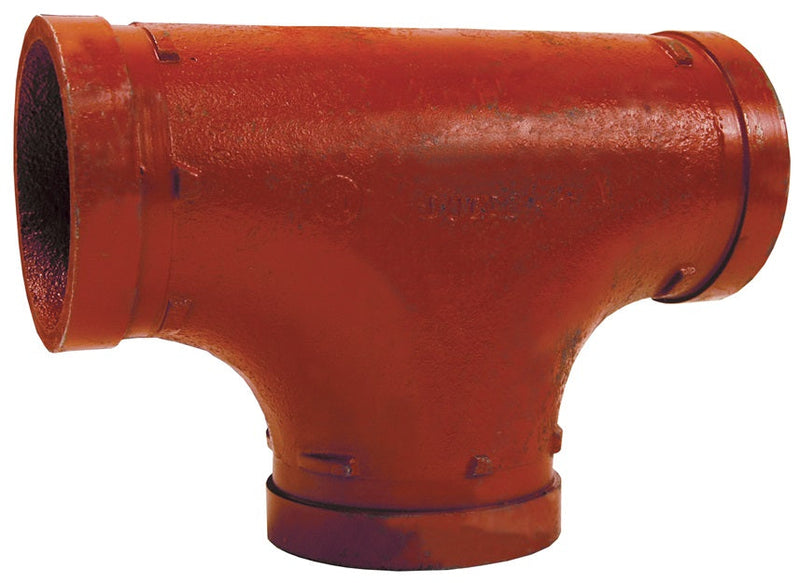

T6025 by Dixon Valve | Series-T | Grooved End Fitting | Tee | 2-1/2" Grooved Ends | Ductile Iron

Save $3.11

$27.96

$27.96 - $27.96

$27.96

$24.85

$24.85 - $24.85

$24.85

Dixon Valve
Grooved End Fitting | Series-T

Designed to provide minimum pressure drop and uniform strength.

Quantity

Specifications for Variant SKU: T6025 Dixon
Series:	Series-T
Shape (Orientation):	90 Degree
Ends Configuration:	2-1/2in Grooved End, 2-1/2in Grooved End, Some Ends Match
Material(s):	Ductile Iron

Comparable to:
Victaulic's #20 Grinnell's #7060
Material:
Ductile iron body with rust inhibiting paint.
Specifications:
Maximum operating pressure: 500 PSI at ambient temperature 70°F (21°C).
Approvals:
Underwriters Listed Factory Mutual approved


Ductile Iron Part Number	Nominal Size	Dimensions C to E
T602	2"	3-1/4"
T6025	2-1/2"	3-3/4"
T603	3"	4-1/4"
T604	4"	5"
T606	6"	6-1/2"
T608	8"	7-3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
