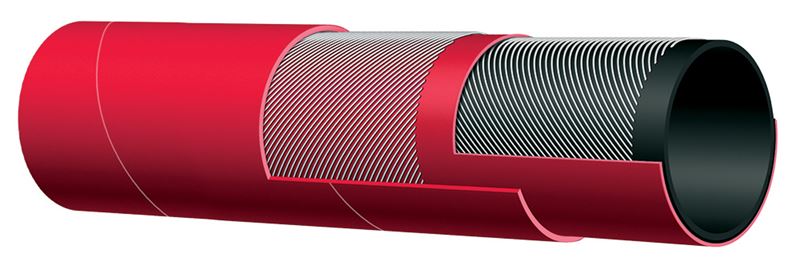

T650AH400X100 Alfagomma by Kuriyama | T650AH Series | Oil Discharge Hose | 4" ID | 4.49" OD | 150 PSI | Red | 100ft Length

T650AH400X100 Alfagomma by Kuriyama | T650AH Series | Oil Discharge Hose | 4" ID | 4.49" OD | 150 PSI | Red | 100ft Length

Save $727.82 Save $727.82
$2,585.45
$2,585.45 - $2,585.45
$2,585.45
$1,857.63
$1,857.63 - $1,857.63
$1,857.63

Kuriyama of America Inc.
Alfagomma | T650AH Series | Oil Discharge Hose

An oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required.

Package Quantity: 100 Foot

Specifications for Variant SKU: T650AH400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T650AH Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.49in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: Oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required.
Other Ratings: - Tube: Black conductive NBR.
Reinforcement: Spiraled high tensile textile cords with embedded static wire. Cover: Red CR - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting or combination nipples attached with bands.
Branding: ALFAGOMMA - ITALY T650 10 BAR (150 PSI) - PETROLEUM DELIVERY (in yellow letters)
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T650AH150X100 1-1/2" 38mm 1.97" 50mm 150 PSI 0.77 lbs/ft
T650AH200X100 2" 51mm 2.40" 61mm 150 PSI 0.82 lbs/ft
T650AH300X100 3" 76mm 3.46" 88mm 150 PSI 1.42 lbs/ft
T650AH400X100 4" 102mm 4.49" 114mm 150 PSI 1.92 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
