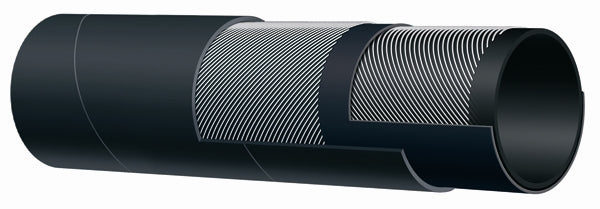

T653AA800X12.6 Alfagomma by Kuriyama | T653AA Series | Soft LengthWall Marine Exhaust Hose | SAE J2006 R1 | 8" ID | 8.70" OD | 75 PSI | Black | 12.5ft Length

T653AA800X12.6 Alfagomma by Kuriyama | T653AA Series | Soft LengthWall Marine Exhaust Hose | SAE J2006 R1 | 8" ID | 8.70" OD | 75 PSI | Black | 12.5ft Length

Save $445.61 Save $445.61
$1,020.82
$1,020.82 - $1,020.82
$1,020.82
$575.21
$575.21 - $575.21
$575.21

Kuriyama of America Inc.
Alfagomma | T653AA Series | Soft Wall Marine Exhaust Hose

For marine wet exhaust and bilge pump connections..

SAE J2006 R1

Package Quantity: 13 Foot

Specifications for Variant SKU: T653AA800X12.6 Kuriyama | 12.6 |
Brand: Alfagomma
Series: T653AA Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 8.70in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE J2006 R1

SPECIFICATIONS

Application: Marine wet exhaust and bilge pump connections.
Other Ratings: SAE J2006 R1 Tube: Black Synthetic Rubber.
Reinforcement: High tensile textile cords. Cover: Black Synthetic Rubber - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +212°F (+100°C) Coupling Suggestions: -
Branding: ALFAGOMMA - ITALY - T653 SOFT WALL MARINE WET EXHAUST SAE J2006 R1 (in blue letters)
Part Number
12.5ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T653AA100X12.6 1" 25mm 1.38" 35mm 75 PSI 0.43 lbs/ft
T653AA112X12.6 1-1/8" 28mm 1.50" 38mm 75 PSI 0.47 lbs/ft
T653AA125X12.6 1-1/4" 32mm 1.65" 42mm 75 PSI 0.52 lbs/ft
T653AA137X12.6 1-3/8" 35mm 1.77" 45mm 75 PSI 0.56 lbs/ft
T653AA150X12.6 1-1/2" 38mm 1.89" 48mm 75 PSI 0.61 lbs/ft
T653AA162X12.6 1-5/8" 42mm 2.05" 52mm 75 PSI 0.66 lbs/ft
T653AA175X12.6 1-3/4" 45mm 2.17" 55mm 75 PSI 0.70 lbs/ft
T653AA189X12.6 1-7/8" 48mm 2.28" 58mm 75 PSI 0.75 lbs/ft
T653AA200X12.6 2" 51mm 2.48" 63mm 75 PSI 0.97 lbs/ft
T653AA225X12.6 2-1/4" 57mm 2.72" 69mm 75 PSI 1.07 lbs/ft
T653AA238X12.6 2-3/8" 60mm 2.91" 74mm 75 PSI 1.31 lbs/ft
T653AA250X12.6 2-1/2" 63mm 3.03" 77mm 75 PSI 1.37 lbs/ft
T653AA300X12.6 3" 76mm 3.54" 90mm 75 PSI 1.64 lbs/ft
T653AA350X12.6 3-1/2" 90mm 4.09" 104mm 75 PSI 1.95 lbs/ft
T653AA400X12.6 4" 102mm 4.57" 116mm 75 PSI 2.18 lbs/ft
T653AA450X12.6 4-1/2" 115mm 5.08" 129mm 75 PSI 2.43 lbs/ft
T653AA500X12.6 5" 127mm 5.55" 141mm 75 PSI 2.68 lbs/ft
T653AA600X12.6 6" 152mm 6.61" 168mm 75 PSI 3.26 lbs/ft
T653AA662X12.6 6-5/8" 168mm 7.24" 184mm 75 PSI 3.57 lbs/ft
T653AA800X12.6 8" 203mm 8.70" 221mm 75 PSI 4.96 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
