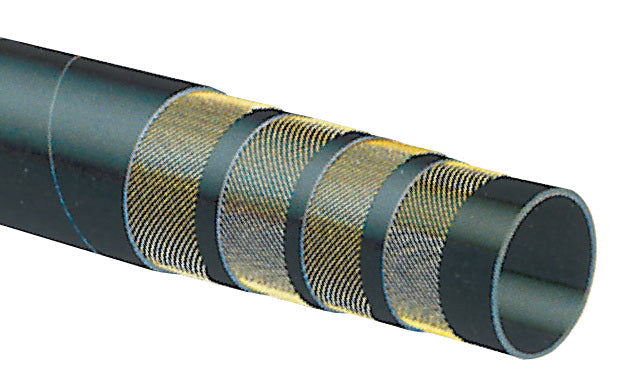

T740AA250X50 Alfagomma by Kuriyama | Conqueror™ T740AA Series | High Performance Steel Reinforced Concrete Pumping Hose | 2-1/2" ID | 3.35" OD | 1275 PSI | Black | 50ft Length

Save $604.06

$1,747.19

$1,747.19 - $1,747.19

$1,747.19

$1,143.13

$1,143.13 - $1,143.13

$1,143.13

Kuriyama of America Inc.
Alfagomma | Conqueror™ T740AA Series | High Performance Steel-Reinforced Concrete Pumping Hose

Special easy-handling construction for concrete placement at casting site.

Package Quantity: 50 Foot

Specifications for Variant SKU: T740AA250X50 Kuriyama \| 50 \|
Brand:	Alfagomma
Series:	T740AA Series, Conqueror Series
Hose Color(s):	Black
Internal Diameter:	2.50in - 2-1/2in
Outer Diameter:	3.35in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/NR Blend
Special Properties:	Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Other Features:
Application:	Special easy-handling construction for concrete placement at casting site.
Other Ratings:	-	Tube:	Black conductive NR - abrasion resistant.
Reinforcement:	High tensile steel cords.	Cover:	Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Branding:	ALFAGOMMA - ITALY T740 85 BAR (1275 PSI) W.P. HEAVY DUTY CONCRETE PUMPING (in white letters)
Heavy Duty Construction - Durable, thick walled construction, resists kinking, elongation and vibration during operation. All sizes rated to working pressure of 1275 PSI with 2:1 safety factor. Steel Cord Reinforcement - Provides extended service life in heavy duty applications such as concrete placement, tunneling and piling rigs. Abrasion Resistant Tube and Cover - The NR (natural rubber) tube resists the wear caused by the flow of abrasive concrete. The SBR/NR blend cover resists the wear caused by dragging over rough surfaces, as well as environmental (UV/ozone) damage. Cold Flex Materials - Hose remains flexible in sub-zero temperatures.

Part Number 50ft	Part Number 100ft	ID		OD		Wall Thickness	Max Rec. Working Pressure	Min. Bend Radius at 68°F	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	(mm)	PSI	(in)	lbs/ft
T740AA200X50	T740AA200X100	2"	51mm	2.72"	69mm	9mm	1275 PSI	10"	1.44 lbs/ft
T740AA250X50	T740AA250X100	2-1/2"	63mm	3.35"	85mm	11mm	1275 PSI	10-1/2"	2.25 lbs/ft
T740AA300X50	T740AA300X100	3"	76mm	3.94"	100mm	12mm	1275 PSI	15"	3.06 lbs/ft
T740AA400X50	T740AA400X100	4"	102mm	5.04"	128mm	13mm	1275 PSI	20"	4.72 lbs/ft
T740AA500X50	-	5"	127mm	6.10"	155mm	14mm	1275 PSI	25"	6.95 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
