T760AA500X100 Alfagomma by Kuriyama | T760AA Series | Light Weight Dry Powder Delivery Hose | 5" ID | 5.47" OD | 75 PSI | Black | 100ft Length

Save $747.84

$2,728.01

$2,728.01 - $2,728.01

$2,728.01

$1,980.17

$1,980.17 - $1,980.17

$1,980.17

Kuriyama of America Inc.

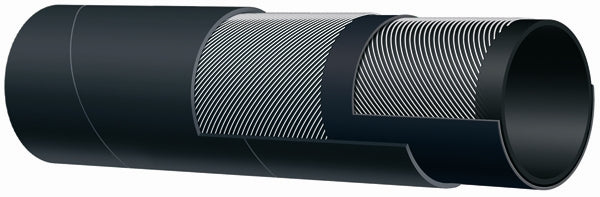

Alfagomma | T760AA Series | Light Weight Dry Powder Delivery Hose

For the discharge of dry powders under low pressure, such as dry cement, grains and animal feed transfer.

Package Quantity: 100 Foot

Specifications for Variant SKU: T760AA500X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T760AA Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.47in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/NR Blend
Special Properties:	Conductive Tube, Conductive Hose Cover

Application:	Discharge of dry powders under low pressure, such as dry cement, grains and animal feed transfer.
Other Ratings:	-	Tube:	3/16" black static conducting NR - compounded to resist cutting by abrasive materials.
Reinforcement:	Spiraled high tensile textile cords.	Cover:	Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	ALFAGOMMA - ITALY T760 5 BAR (75 PSI) BULK MATERIAL DELIVERY (in white letters)
Note:	Excessive bending during operation may cause premature wear.

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	lbs/ft
T760AA400X100	4"	102mm	4.53"	115mm	75 PSI	1.58 lbs/ft
T760AA450X100	4-1/2"	115mm	5.00"	127mm	75 PSI	1.85 lbs/ft
T760AA500X100	5"	127mm	5.47"	139mm	75 PSI	2.05 lbs/ft
T760AA600X100	6"	152mm	6.61"	168mm	75 PSI	2.30 lbs/ft
