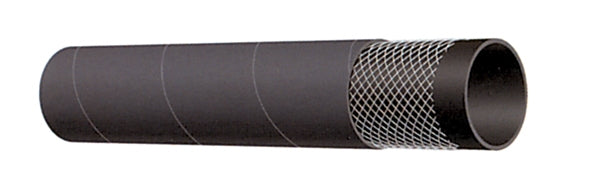

T763AA400X100 Alfagomma by Kuriyama | T763AA Series | Heavy Weight Dry Powder Delivery Hose | 4" ID | 4.72" OD | 75 PSI | Black | 100ft Length

T763AA400X100 Alfagomma by Kuriyama | T763AA Series | Heavy Weight Dry Powder Delivery Hose | 4" ID | 4.72" OD | 75 PSI | Black | 100ft Length

Save $679.22 Save $679.22
$2,247.86
$2,247.86 - $2,247.86
$2,247.86
$1,568.64
$1,568.64 - $1,568.64
$1,568.64

Kuriyama of America Inc.
Alfagomma | T763AA Series | Heavy Weight Dry Powder Delivery Hose

For the discharge of dry powders under low pressure and the pneumatic transfer of dry materials and abrasive slurries.

Package Quantity: 100 Foot

Specifications for Variant SKU: T763AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T763AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.72in
Tubing Construction: Natural Rubber
Cover Construction: SBR/NR Blend
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Application: Discharge of dry powders under low pressure. Pneumatic transfer of dry materials and abrasive slurries.
Other Ratings: - Tube: 1/4" black static conducting NR - compounded to resist cutting by abrasive materials.
Reinforcement: Spiraled high tensile textile cords. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY T763 5 BAR (75 PSI) BULK MATERIAL DELIVERY (in green letters)
Note: Excessive bending during operation may cause premature wear.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T763AA400X100 4" 102mm 4.72" 120mm 75 PSI 2.14 lbs/ft
T763AA450X100 4-1/2" 115mm 5.24" 133mm 75 PSI 2.30 lbs/ft
T763AA500X100 5" 127mm 5.71" 145mm 75 PSI 2.60 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
