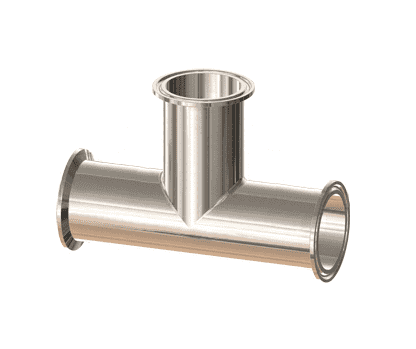

T7MP-150PM Dixon 1-1/2" 316L Stainless Steel High Purity BioPharm Clamp x Clamp x Clamp Tee with a PM finish - SF4

T7MP-150PM Dixon Valve 1-1/2" 316L Stainless Steel High Purity BioPharm Clamp x Clamp x Clamp Tee with a PM finish - SF4

Save $10.75 Save $10.75
$96.72
$96.72 - $96.72
$96.72
$85.97
$85.97 - $85.97
$85.97

Dixon Bio-Pharmaceutical Fittings (BPE) - High Purity BioPharm Clamp x Clamp x Clamp Tees - 316L Stainless Steel - PM finish - SF4
Specifications for Variant SKU: T7MP-150PM Dixon
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Electropolished
Applications:
  • High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Notes:
  • PL Finish - SF1:
    • OD = 32Ra Mechanically Polished
    • ID = 20Ra Mechanically Polished
  • PM Finish - SF4:
    • OD = 32Ra Mechanically Polished
    • ID = 15Ra Mechanically Polished and Electropolished
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
Part Number Size Dimensions Weight (Lbs.)
A B
T7MP-050PM 1/2" 4.500" 2.250" 0.2200
T7MP-075PM 3/4" 4.750" 2.375" 0.3100
T7MP-100PM 1" 5.250" 2.625" 0.7100
T7MP-150PM 1-1/2" 5.750" 2.875" 0.7500
T7MP-200PM 2" 6.750" 3.375" N/A
T7MP-250PM 2-1/2" 7.250" 3.625" N/A
T7MP-300PM 3" 7.750" 3.875" 2.0700
T7MP-400PM 4" 9.500" 4.750" 3.8400
