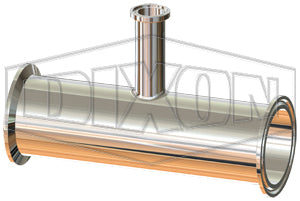

T7RMP-250050PM Dixon Valve 2-1/2" x 1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp x Clamp Reducing Tee BPE2012 (PM Finish SF4)

T7RMP-250050PM Dixon Valve 2-1/2" x 1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp x Clamp Reducing Tee BPE2012 (PM Finish SF4)

Save $126.91 Save $126.91
$317.27
$317.27 - $317.27
$317.27
$190.36
$190.36 - $190.36
$190.36

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Clamp x Clamp x Clamp Reducing Tee - T7RMP

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T7RMP-250050PM Dixon
Shape (Orientation): Tee
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, 1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Electropolished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B OD1 ID1 OD2 ID2
T7RMP-075050PL T7RMP-075050PM 3/4" x 1/2" 2.500" 2.500" 0.750" 0.620" 0.500" 0.370"
T7RMP-100050PL T7RMP-100050PM 1" x 1/2" 2.625" 2.625" 1.000" 0.870" 0.500" 0.370"
T7RMP-100075PL T7RMP-100075PM 1" x 3/4" 2.625" 2.625" 1.000" 0.870" 0.750" 0.620"
T7RMP-150050PL T7RMP-150050PM 1-1/2" x 1/2" 2.875" 2.875" 1.500" 1.370" 0.500" 0.370"
T7RMP-150075PL T7RMP-150075PM 1-1/2" x 3/4" 2.875" 2.875" 1.500" 1.370" 0.750" 0.620"
T7RMP-150100PL T7RMP-150100PM 1-1/2" x 1" 2.875" 2.875" 1.500" 1.370" 1.000" 0.870"
T7RMP-200050PL T7RMP-200050PM 2" x 1/2" 3.375" 3.125" 2.000" 1.870" 0.500" 0.370"
T7RMP-200075PL T7RMP-200075PM 2" x 3/4" 3.375" 3.125" 2.00" 1.870" 0.750" 0.620"
T7RMP-200100PL T7RMP-200100PM 2" x 1" 3.375" 3.125" 2.000" 1.870" 1.000" 0.870"
T7RMP-200150PL T7RMP-200150PM 2" x 1-1/2" 3.375" 3.125" 2.000" 1.870" 1.500" 1.370"
T7RMP-250050PL T7RMP-250050PM 2-1/2" x 1/2" 3.625" 3.375" 2.500" 2.370" 0.500" 0.370"
T7RMP-250075PL T7RMP-250100PM 2-1/2" x 3/4" 3.625" 3.375" 2.500" 2.370" 0.750" 0.620"
T7RMP-250100PL - 2-1/2" x 1" 3.625" 3.375" 2.500" 3.370" 1.000" 0.870"
T7RMP-250150PL T7RMP-250150PM 2-1/2" x 1-1/2" 3.625" 3.375" 2.500" 2.370" 1.500" 1.370"
T7RMP-250200PL T7RMP-250200PM 2-1/2" x 2" 3.625" 3.375" 2.500" 2.370" 2.000" 1.870"
T7RMP-300050PL T7RMP-300050PM 3" x 1/2" 3.875" 3.625" 3.000" 2.870" 0.500" 0.500"
T7RMP-300075PL T7RMP-300075PM 3" x 3/4" 3.875" 3.625" 3.00" 2.870" 0.750" 0.750"
T7RMP-300100PL T7RMP-300100PM 3" x 1" 3.875" 3.625" 3.000" 2.870" 1.000" 0.870"
T7RMP-300150PL T7RMP-300150PM 3" x 1-1/2" 3.875" 3.625" 3.000" 2.870" 1.500" 1.370"
T7RMP-300200PL T7RMP-300200PM 3" x 2" 3.875" 3.625" 3.000" 2.870" 2.000" 1.870"
T7RMP-300250PL T7RMP-300250PM 3" x 2-1/2" 3.875" 3.625" 3.000" 2.870" 2.500" 2.370"
T7RMP-400050PL - 4" x 1/2" 4.750" 4.125" 4.000" 3.834" 0.500" 0.370"
T7RMP-400075PL T7RMP-400075PM 4" x 3/4" 4.750" 4.125" 4.000" 3.834" 0.750" 0.620"
T7RMP-400100PL T7RMP-400100PM 4" x 1" 4.750" 4.125" 4.000" 3.834" 1.000" 0.870"
T7RMP-400150PL T7RMP-400150PM 4" x 1-1/2" 4.750" 4.125" 4.000" 3.834" 1.500" 1.370"
T7RMP-400200PL T7RMP-400200PM 4" x 2" 4.750" 4.375" 4.000" 3.834" 2.000" 1.870"
T7RMP-400250PL T7RMP-400250PM 4" x 2-1/2" 4.750" 4.375" 4.000" 3.834" 2.500" 2.370"
T7RMP-400300PL T7RMP-400300PM 4" x 3" 4.750" 4.375" 4.000" 3.834" 3.000" 2.870"
T7RMP-600300PL T7RMP-600300PM 6" x 3" 7.125" 5.375" 6.000" 5.782" 3.000" 2.870"
T7RMP-600400PL - 6" x 4" 7.125" 5.750" 6.000" 5.782" 4.000" 3.834"
