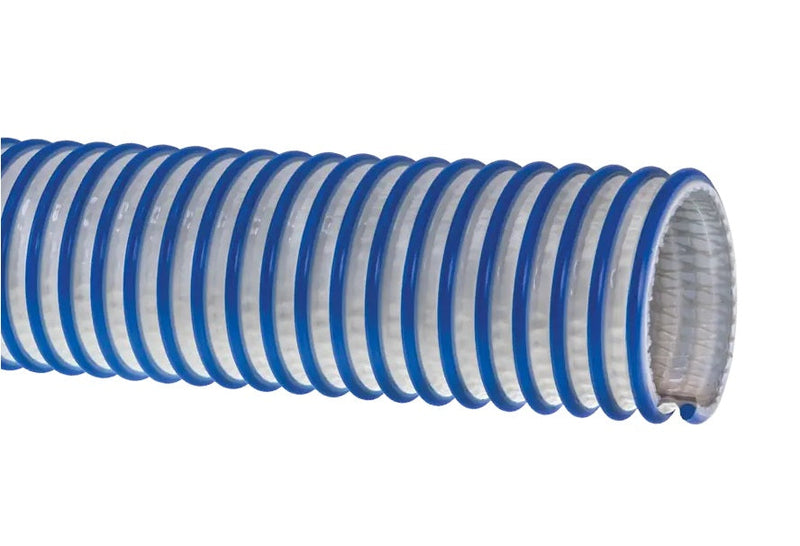

TAQ400X100 Tigerflex® Tiger™ Aqua by Kuriyama | TAQ™ Series | Potable Water Suction & Discharge Hose | PVC | 4" ID | 4.76" OD | 100ft Length

TAQ400X100 Tigerflex® Tiger™ Aqua by Kuriyama | TAQ™ Series | Potable Water Suction & Discharge Hose | PVC | 4" ID | 4.76" OD | 100ft Length

Save $530.98 Save $530.98
$2,255.98
$2,255.98 - $2,255.98
$2,255.98
$1,725.00
$1,725.00 - $1,725.00
$1,725.00
p>Kuriyama of America Inc.
Tigerflex® | Tiger™ Aqua | TAQ™ Series Series | Potable Water Suction & Discharge Hose | PVC

Ideal for potable water service in residential, oilfield, airport, and marine applications, as well as ice transfer and food-grade liquids such as beer, wine, and juice.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: TAQ400X100 Kuriyama | 100 |
Brand: Tigerflex, Tiger Aqua
Series: TAQ Series
Hose Color(s): Blue & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: BSE/TSE, FDA 21 CFR Part 170.199, FDA 21 CFR Part 177.2600, FDA 21 CFR Part 175.105, RoHS Compliant
Special Properties: Outer Helix Protection
Potable Water Hose

Tigerflex™ TAQ Series

Food grade double-ply PVC suction and pressure hose with an NSF listed liner, polyester fabric reinforcement and rigid PVC helix — built for potable water transfer and food grade liquids.

✓

NSF Listed Liner

Liner material certified under NSF/ANSI/CAN 61 for potable water

★

Food Grade Materials

Complies with applicable FDA requirements

❄

Cold-Flex Materials

Remains flexible in sub-zero temperatures

◎

Opaque White Cover

Reduces staining, blocks UV and reduces algae growth

1

What is this product used for?
  • Transfer of potable water in residential, oilfield, airport and marine (ship) applications
  • Ice transfer
  • Food grade liquids such as beer, wine, and juice
2

What are the key specifications?
Tube

Double-ply PVC

Reinforcement

Polyester fabric, rigid PVC helix

Cover

PVC

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

BSE/TSE (02) · FDA (03) · FDA (05) · Phthalate Free (10) · RoHS (11)

3

What are the main product features?
  • NSF Listed Liner — Hose liner material certified under NSF/ANSI/CAN 61 for use in potable water applications. Please refer to the note below for the official NSF listing.
  • Food Grade Materials — Hose complies with applicable FDA (03) requirements.
  • "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
  • Opaque Construction — Solid white cover reduces appearance of staining from conveyed materials, blocks out UV, reducing instances of algae growth.
  • Fabric Reinforcement — Designed with a high tensile strength, food grade (05), polyester yarn jacket to handle suction and pressure applications.
  • Easy Slide Helix — Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Made in the USA
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
TAQ150X100 1-1/2" 38.1mm 1.95" 49.5mm 110 PSI 70 PSI Full 28 in Hg 2-1/2" 100ft 0.42 lbs
TAQ200X100 2" 50.8mm 2.60" 66.0mm 100 PSI 65 PSI Full 28 in Hg 4" 100ft 0.74 lbs
TAQ300X100 3" 76.2mm 3.62" 92.0mm 100 PSI 50 PSI Full 28 in Hg 6" 100ft 1.13 lbs
TAQ400X100 4" 101.6mm 4.76" 121.0mm 75 PSI 37 PSI Full 28 in Hg 8" 100ft 1.74 lbs
TAQ600X100 6" 152.4mm 7.17" 182.1mm 70 PSI 35 PSI 28 in Hg 25 in Hg 13" 100ft 3.88 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free and RoHS compliance.

i
Liner manufactured using NSF certified materials for applications requiring compliance with potable water safety standards. While the complete hose is not listed, it meets the same extraction criteria established under NSF61 and is suitable for use where NSF61-compliant materials are specified in lieu of full hose certification. Service life may vary depending on operating conditions and type of material being conveyed.

How is this product sold?

Sold by the coil in 100 ft lengths. See the size chart above for available part numbers.
