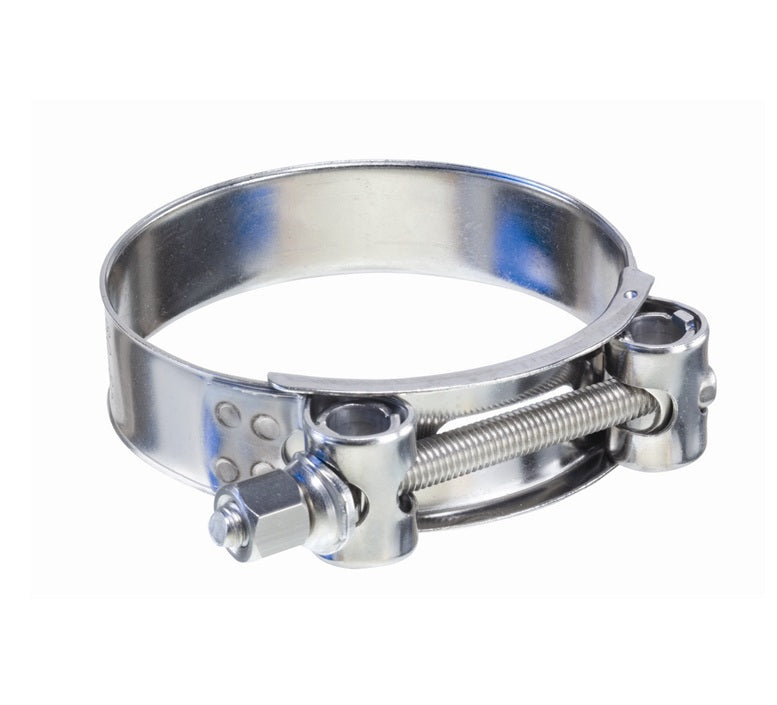

TBC-SS079 by Kuriyama | Heavy Duty T-Bolt Hose Clamp | 2-29/32" to 3-3/16" Size Range | 15/16" Band Width | 304 Stainless Steel

TBC-SS079 by Kuriyama | Heavy Duty T-Bolt Hose Clamp | 2-29/32" to 3-3/16" Size Range | 15/16" Band Width | 304 Stainless Steel

Save $6.70 Save $6.70
$16.16
$16.16 - $16.16
$16.16
$9.46
$9.46 - $9.46
$9.46

Kuriyama of America Inc.
TBC-SS Series | Heavy Duty T-Bolt Clamp

304 stainless steel band, bolt, and nut.

T-Bolt design provides extra strength and creates a 360¢ª seal to prevent leaks.
Specifications for Variant SKU: TBC-SS079 Kuriyama
Series: TBC-SS Series
Material(s): 304 Stainless Steel
Clamp Width: 0.9375in
Minimum Clamp I.D.: 2.90625in
Maximum Clamp I.D.: 3.1875in

What are the Features?

  • T-Bolt design provides extra strength and creates a 360¢ª seal to prevent leaks.
  • Folded turn edge design of the band prevents damage to hoses or tubes.
  • Hex nut provides easy installation.

How is it Constructed?

  • 304 stainless steel band, bolt, and nut.
Part Number Size Range
(in)		 Band
Width
(in)		 Maximum
Torque
(ft lbs.)
TBC-SS019 21/32" - 3/4" 23/32" 6 ft lbs.
TBC-SS022 25/32" - 7/8" 23/32" 6 ft lbs.
TBC-SS025 29/32" - 1" 23/32" 6 ft lbs.
TBC-SS028 1-1/32" - 1-3/32" 23/32" 6 ft lbs.
TBC-SS031 1-5/32" - 1-7/32" 25/32" 7 ft lbs.
TBC-SS035 1-1/4" - 1-3/8" 25/32" 7 ft lbs.
TBC-SS039 1-3/8" - 1-9/16" 25/32" 7 ft lbs.
TBC-SS043 1-5/8" - 1-13/16" 25/32" 7 ft lbs.
TBC-SS047 1-3/4" - 1-15/16" 7/8" 10 ft lbs.
TBC-SS051 1-7/8" - 2-1/16" 7/8" 10 ft lbs.
TBC-SS055 2-1/8" - 2-5/16" 7/8" 10 ft lbs.
TBC-SS059 2-1/4" - 2-7/16" 7/8" 10 ft lbs.
TBC-SS063 2-3/8" - 2-9/16" 7/8" 10 ft lbs.
TBC-SS067 2-17/32" - 2-13/16" 7/8" 10 ft lbs.
TBC-SS073 2-21/32" - 2-15/16" 15/16" 17 ft lbs.
TBC-SS079 2-29/32" - 3-3/16" 15/16" 17 ft lbs.
TBC-SS085 3-1/32" - 3-5/16" 15/16" 17 ft lbs.
TBC-SS091 3-9/32" - 3-9/16" 15/16" 17 ft lbs.
TBC-SS097 3-17/32" - 3-13/16" 15/16" 17 ft lbs.
TBC-SS103 3-25/32" - 4-1/16" 15/16" 17 ft lbs.
TBC-SS112 4-1/32" - 4-5/16" 15/16" 17 ft lbs.
TBC-SS121 4-17/32" - 4-13/16" 15/16" 17 ft lbs.
TBC-SS130 4-25/32" - 5-1/16" 15/16" 17 ft lbs.
TBC-SS139 5-9/32" - 5-9/16" 1-1/32" 29 ft lbs.
TBC-SS148 5-17/32" - 5-13/16" 1-1/32" 29 ft lbs.
TBC-SS161 5-7/8" - 6-11/32" 1-1/32" 29 ft lbs.
TBC-SS174 6-17/32" - 6-13/16" 1-1/32" 29 ft lbs.
TBC-SS187 6-7/8" - 7-3/8" 1-1/32" 29 ft lbs.
TBC-SS200 7-13/32" - 7-7/8" 1-1/32" 29 ft lbs.
TBC-SS213 7-29/32" - 8-3/8" 1-1/32" 29 ft lbs.
TBC-SS226 8-21/32" - 8-15/16" 1-1/32" 29 ft lbs.
TBC-SS239 8-15/16" - 9-13/32" 1-1/32" 29 ft lbs.
TBC-SS252 9-7/16" - 9-29/32" 1-1/32" 29 ft lbs.
