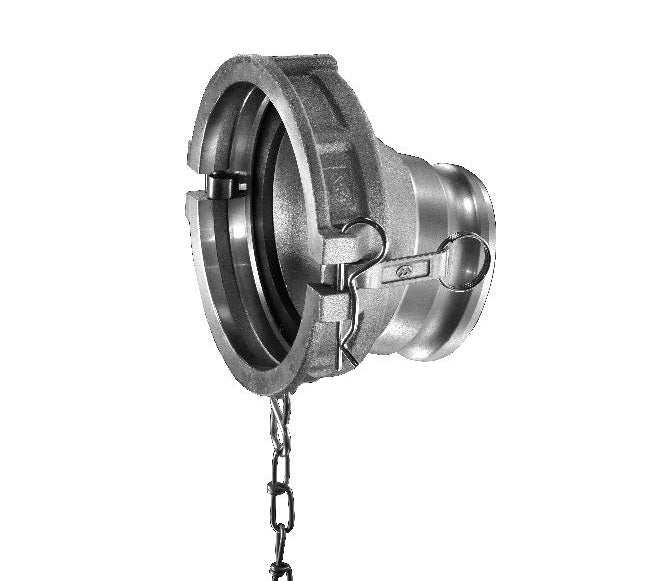

TCDA-A4040 by Kuriyama | TCDA Series | Part DA | Cam & Groove Adapter | 22° Elbow | 4" API Female Coupler x 4" Cam & Groove Adapter | Aluminum

Save $20.52

$107.15

$107.15 - $107.15

$107.15

$86.63

$86.63 - $86.63

$86.63

Kuriyama Couplings™ - Petroleum Quick-Acting Couplings - Part A - API Aluminum Female Coupler x Male Adapter - Aluminum

Specifications for Variant SKU: TCDA-A4040 Kuriyama
Series:	TCDA Series
Shape (Orientation):	22 Degree
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made for use in petroleum markets with bottom loading applications.
API coupler end designed at a 22° angle for easy connecting and unrestricted off-loading.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles, which results in less wear on connecting parts.

What are the Materials?

ASTM aluminum alloy.
Supplied with a heavy-duty attachment chain.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	API Size (in)	Cam & Groove Adapter Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
TCDA-A4030	4"	3"	150	B26 Grade 713	4.25 lbs
TCDA-A4040	4"	4"	150	B26 Grade 713	4.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
