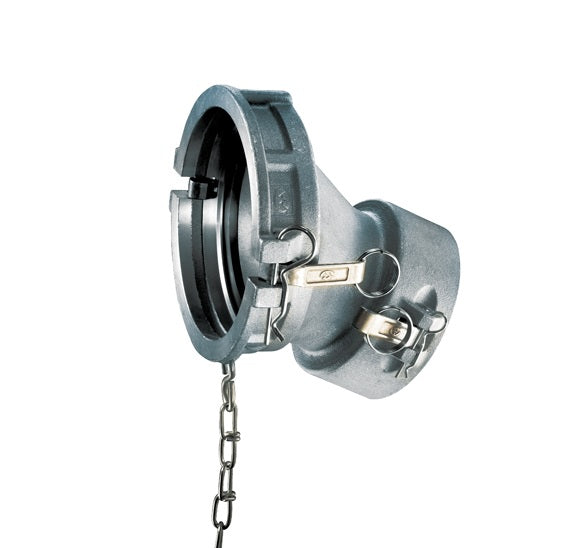

TCDD-A4040 by Kuriyama | TCDD Series | Part DD | Cam & Groove Adapter | 22° Elbow | 4" API Female Coupler x 4" Cam & Groove Coupler | Aluminum

Save $26.46

$146.99

$146.99 - $146.99

$146.99

$120.53

$120.53 - $120.53

$120.53

Kuriyama Couplings™ - Petroleum Quick-Acting Couplings - Part A - API Aluminum Female Coupler x Female Coupler - Aluminum

Specifications for Variant SKU: TCDD-A4040 Kuriyama
Series:	TCDD Series
Shape (Orientation):	22 Degree
Cam Type:	Type DD (Spool Coupler)
Ends Configuration:	4in Female Cam & Groove, 4in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made for use in petroleum markets with bottom loading applications.
API coupler end designed at a 22° angle for easy connecting and unrestricted off-loading.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles, which results in less wear on connecting parts.

What are the Materials?

ASTM aluminum alloy.
Supplied with a heavy-duty attachment chain.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
TCDD-A4040	4"	150 PSI	B26 Grade 713	6.00 lbs
