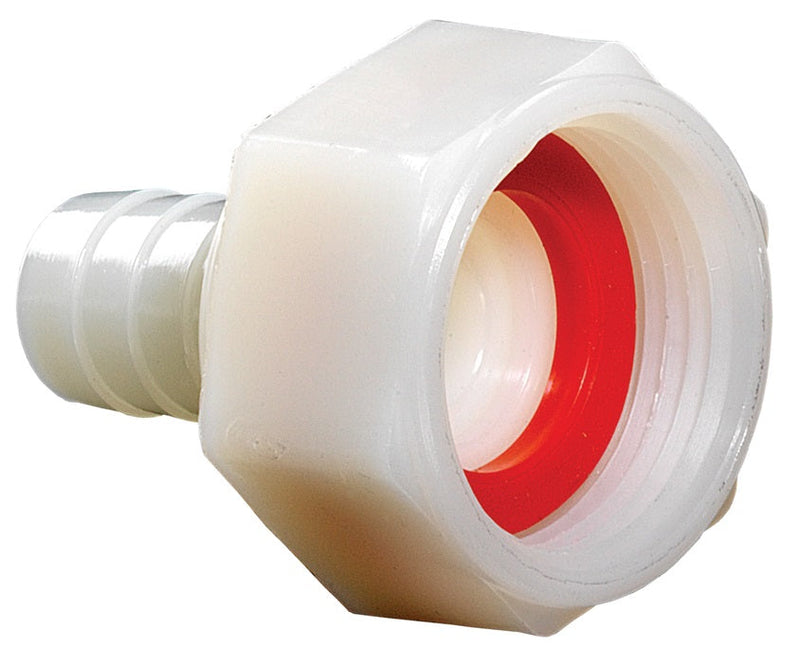

TCF64 by Dixon Valve | Tuff-Lite® | Female Short Shank Tubing Insert | 3/4" Female NSPM x 1/2" Hose ID | Nylon

TCF64 by Dixon Valve | Tuff-Lite® | Female Short Shank Tubing Insert | 3/4" Female NSPM x 1/2" Hose ID | Nylon

Save $0.74 Save $0.74
$1.85
$1.85 - $1.85
$1.85
$1.11
$1.11 - $1.11
$1.11

Dixon Valve
Tuff-Lite® | Female Short Shank Tubing Insert | Female NSPM x Hose Barb
Specifications for Variant SKU: TCF64 Dixon
Brand: Tuff-Lite
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/4in Female NPSM
Material(s): Nylon
Seal Material(s): Vinyl
Features:
  • Short Shank Style.
  • Can be used with TN26 Tuff-Lite Hose Shank x Male NPT Insert.
  • Includes red vinyl washer, part # TVW7.
Safety Notes:
  • Nylon fittings should not be used with acid-based fertilizers, bromine, chlorine, fluorine, hydrochloric acid, iodine, nitric acid, phosphoric acid, sulfuric acid, or xylene.
  • Nylon should not be used with compressed gas.
  • Fittings are white.
Nylon
Part Number		 Hose Size Female NPSM
TCF62 1/4" 3/4"
TCF63 3/8" 3/4"
TCF64 1/2" 3/4"
TCF65 5/8" 3/4"
TCF66 3/4" 3/4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
