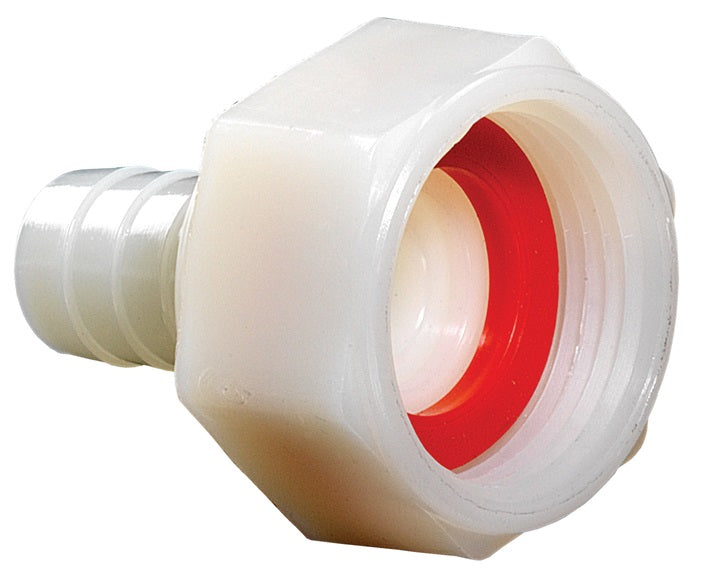

TCF76 by Dixon Valve | Tuff-Lite® | Short Shank Fitting | 3/4" Female GHT x 3/4" Hose ID | Nylon

TCF76 by Dixon Valve | Tuff-Lite® | Short Shank Fitting | 3/4" Female GHT x 3/4" Hose ID | Nylon

Save $0.17 Save $0.17
$1.50
$1.50 - $1.50
$1.50
$1.33
$1.33 - $1.33
$1.33

Dixon Valve
Tuff-Lite® | Short Shank Fitting | Female GHT x Hose Barb
Specifications for Variant SKU: TCF76 Dixon
Brand: Tuff-Lite
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female GHT
Material(s): Nylon
Seal Material(s): Vinyl
Features:
  • Can be used with Tuff-Lite Short Shank Male Coupling.
  • Includes red vinyl washer.
Safety Notes:
  • Nylon:
    • Nylon fittings should not be used with acid-based fertilizers, bromine, chlorine, fluorine, hydrochloric acid, iodine, nitric acid, phosphoric acid, sulfuric acid, or xylene.
    • Nylon should not be used with compressed gas.
    • Fittings are white.
  • Polypropylene:
    • Polypropylene fittings should not be used with aromatic hydrocarbons, carbon tetra-chloride, gasoline, hexane, kerosene, nitric acid, sodium hydrochlorite, toluene, trichloroethylene, or xylene.
    • Polypropylene should not be used with compressed gas.
    • Fittings are black.
Nylon
Part Number		 Polypropylene
Part Number		 Hose
Shank		 Thread
Size
TCF72 PPCF72 1/4" 3/4" Female GHT
TCF73 PPCF73 3/8" 3/4" Female GHT
TCF74 PPCF74 1/2" 3/4" Female GHT
TCF75 PPCF75 5/8" 3/4" Female GHT
TCF76 PPCF76 3/4" 3/4" Female GHT
