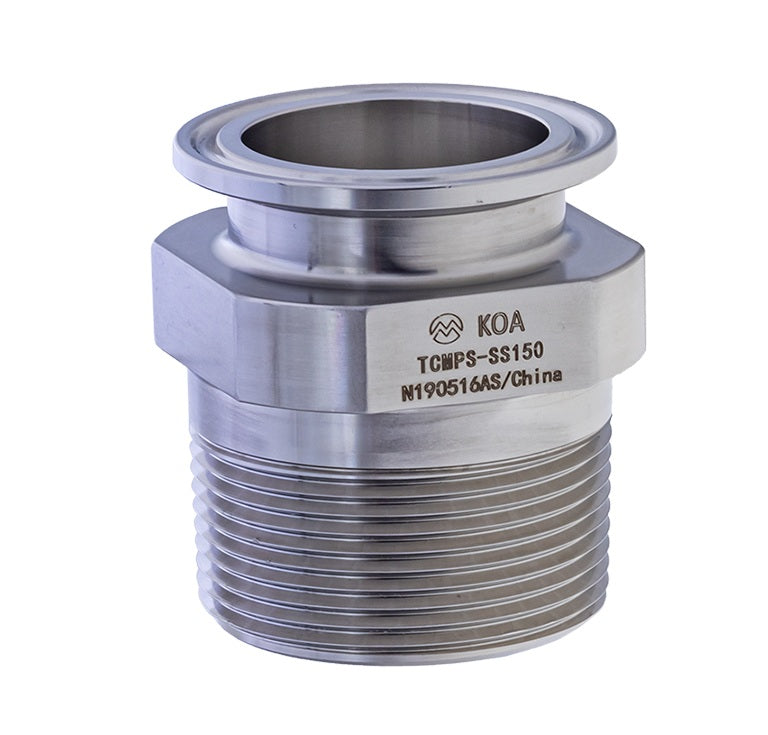

TCMPS-SS200150 by Kuriyama | TCMPS-SS Series | Sanitary Adapter | 2" Tri-Clamp End x 1-1/2" Male NPT | 316 Stainless Steel

TCMPS-SS200150 by Kuriyama | TCMPS-SS Series | Sanitary Adapter | 2" Tri-Clamp End x 1-1/2" Male NPT | 316 Stainless Steel

Save $16.50 Save $16.50
$95.78
$95.78 - $95.78
$95.78
$79.28
$79.28 - $79.28
$79.28

Kuriyama of America Inc.
Sanitary Tri-Clamp Adapter | Tri-Clamp x Male NPT Threads
Specifications for Variant SKU: TCMPS-SS200150 Kuriyama
Series: TCMPS-SS Series
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Special Properties: Food Grade

What are the Features?

  • Durable 316 stainless steel.
  • Smooth 32 Ra food contact surface finish.
  • Uses SPHDS, DPHDS or DBS series clamps.
  • Uses Tri-Clamp gaskets.

The Kuriyama Sanitary Advantage:

  • Material Safety - Every KOA Sanitary Fitting is made from 316L stainless steel, and can be traced back to its original Material Test Report (MTR) by the heat number imprinted on each individual fitting.
  • Food Safety - Sanitary fittings are manufactured with a smooth (32Ra) polish on food contact surfaces, and without any pockets or tight radii where food could become trapped. Additionally, KOA Sanitary Fittings are designed with Finepoint™ barb ends, virtually eliminating areas where food or other transferred materials can become trapped at the fitting to hose transition area.
  • Quality Control - In addition to the quality assurance inspections performed during manufacturing, KOA Sanitary Fittings are independently lab tested after their manufacture to ensure conformance of their physical properties using an Olympus Innov-X Alloys and Metals Analyzer.
  • Cleaning & Packaging - After manufacturing, KOA Sanitary Fittings undergo an ultrasonic cleaning process, and are individually bubble and shrink-wrapped to ensure they arrive in pristine condition.
Part Number Fitting End Size
(in)		 Male NPT Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
TCMPS-SS100075 1" 3/4" 690 PSI 0.55 lbs
TCMPS-SS100 1" 1" 690 PSI 0.90 lbs
TCMPS-SS150 1-1/2" 1-1/2" 690 PSI 1.44 lbs
TCMPS-SS150200 1-1/2" 2" 690 PSI 2.48 lbs
TCMPS-SS200150 2" 1-1/2" 690 PSI 2.15 lbs
TCMPS-SS200 2" 2" 690 PSI 3.12 lbs
TCMPS-SS250200 2-1/2" 2" 435 PSI 2.60 lbs
TCMPS-SS250 2-1/2" 2-1/2" 435 PSI 2.76 lbs
TCMPS-SS300200 3" 2" 435 PSI 3.36 lbs
TCMPS-SS300 3" 3" 435 PSI 5.00 lbs
TCMPS-SS400 4" 4" 435 PSI 6.95 lbs
