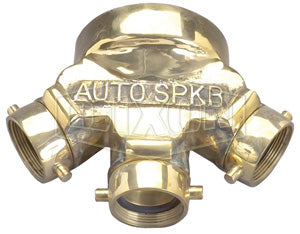

TCS4025F Dixon AutoSprinkler Cast Brass Straight Triple Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Three 2-1/2" Female NST(NH) Inlets

Name: TCS4025F Dixon AutoSprinkler Cast Brass Straight Triple Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Three 2-1/2" Female NST(NH) Inlets
Brand: Dixon
SKU: TCS4025F Dixon
Price: 1456.4 USD
Availability: InStock

Save $137.91

$1,594.31

$1,594.31 - $1,594.31

$1,594.31

$1,456.40

$1,456.40 - $1,456.40

$1,456.40

Dixon Fire Fittings
Triple Clapper Siamese Connection - Back Outlet

Quantity

Specifications for Variant SKU: TCS4025F Dixon
Shape (Orientation):	Multi-Directional
Ends Configuration:	4in Female NPT, 2-1/2in Female NST
Material(s):	Brass

Features:
Maximum operating pressure: 175 PSI at 70°F (21°C)


Size	A	B	C
4" x 2-1/2" x 2-1/2" x 2-1/2"	13-3/4"	10-1/2"	5"
6" x 2-1/2" x 2-1/2" x 2-1/2"	13-3/4"	10-1/2"	7-1/2"

Part Number	Branding	Outlet	Inlets	Weight (Lbs.)
TCS4025F	AutoSprinkler	4" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	23.0000
TCS4025F-SP	StandPipe	4" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	21.7000
TCS4025F-NB	No Branding	4" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	20.8800
TCS6025F	AutoSprinkler	6" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	30.3200
TCS6025F-SP	StandPipe	6" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	30.7400
TCS6025F-NB	No Branding	6" Female NPT	2-1/2" Female NST (NH) 2-1/2" Female NST (NH) 2-1/2" Female NST (NH)	29.7600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
