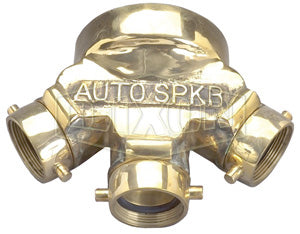

TCS6025F Dixon AutoSprinkler Cast Brass Straight Triple Clapper Siamese Connection - Back Outlet - 6" Female NPT Outlet x Three 2-1/2" Female NST(NH) Inlets

TCS6025F Dixon AutoSprinkler Cast Brass Straight Triple Clapper Siamese Connection - Back Outlet - 6" Female NPT Outlet x Three 2-1/2" Female NST(NH) Inlets

Save $1,143.41 Save $1,143.41
$2,858.53
$2,858.53 - $2,858.53
$2,858.53
$1,715.12
$1,715.12 - $1,715.12
$1,715.12

Dixon Fire Fittings
Triple Clapper Siamese Connection - Back Outlet
Specifications for Variant SKU: TCS6025F Dixon
Shape (Orientation): Multi-Directional
Ends Configuration: 6in Female NPT, 2-1/2in Female NST
Material(s): Brass
Features:
  • Maximum operating pressure: 175 PSI at 70°F (21°C)
Size A B C
4" x 2-1/2" x 2-1/2" x 2-1/2" 13-3/4" 10-1/2" 5"
6" x 2-1/2" x 2-1/2" x 2-1/2" 13-3/4" 10-1/2" 7-1/2"
Part Number Branding Outlet Inlets Weight
(Lbs.)
TCS4025F AutoSprinkler 4" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 23.0000
TCS4025F-SP StandPipe 4" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 21.7000
TCS4025F-NB No Branding 4" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 20.8800
TCS6025F AutoSprinkler 6" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 30.3200
TCS6025F-SP StandPipe 6" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 30.7400
TCS6025F-NB No Branding 6" Female NPT 2-1/2" Female NST (NH)
2-1/2" Female NST (NH)
2-1/2" Female NST (NH)		 29.7600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
