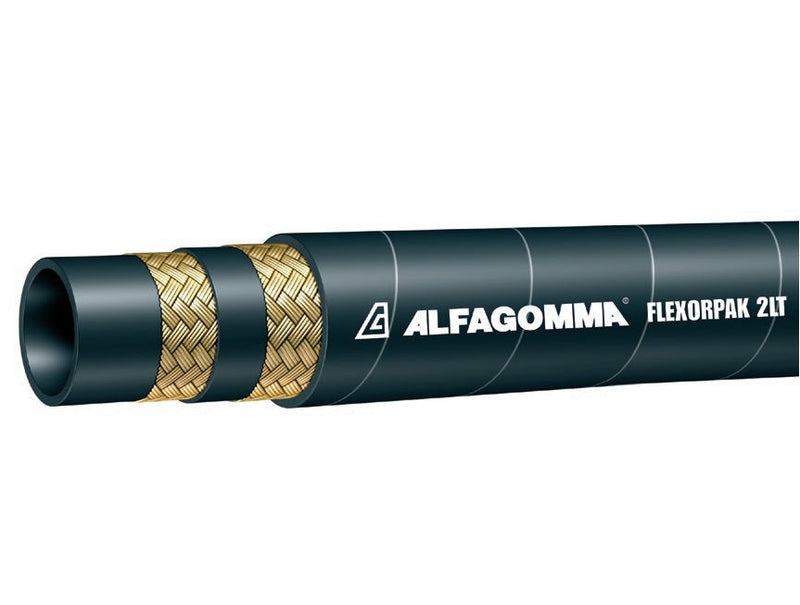

TF2LT-10 Alfagomma by Kuriyama | TF2LT Series | SAE 100R16 | FLEXOPAK Low Temp Hydraulic Hose | Compact 2-Wire Braid | 5/8" ID | 0.92" OD | 4000 PSI

TF2LT-10 Alfagomma by Kuriyama | TF2LT Series | SAE 100R16 | FLEXOPAK Low Temp Hydraulic Hose | Compact 2-Wire Braid | 5/8" ID | 0.92" OD | 4000 PSI

Save $2.36 Save $2.36
$8.26
$8.26 - $8.26
$8.26
$5.90
$5.90 - $5.90
$5.90

Kuriyama of America Inc.
Alfagomma | TF2LT Series | SAE 100R16 | FLEXOPAK Low Temp Hydraulic Hose | Compact 2-Wire Braid

High-pressure hose for low-temp use with oil, water, air, and hydraulic fluids.

Tight bend radius and excellent impulse performance over 1,000,000 cycles.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TF2LT-10 Kuriyama
Brand: Alfagomma
Series: TF2LT Series, FLEXOPAK
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 0.92in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R16, EN857
Compatible with the following Series: B Series
Application: High pressure service hose with tight bending radius for low temperature applications with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, air and water. Excellent impulse performance, exceeding 1,000,000 cycles when tested with appropriate ALFAGOMMA couplings. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. SAE Rating: Meets or exceeds SAE 100R16
Other Ratings: EN 857 2SC Tube: Synthetic rubber, black... low temperature, oil-resistant.
Reinforcement: Two high tensile steel compact wire braids. Cover: Synthetic rubber, black... weather, oil, ozone, abrasion and low temperature-resistant.
Service Temperature Range: -58°F (-50°C) to +212°F (+100°C) constant operation
Maximum operating temperature: +257°F (+125°C)		 Air Maximum Temperature: +160°F (+70°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOPAK 2 LT ID ...WP ...MPa (...PSI) - LOW TEMPERATURE -50°C - EXCEEDS SAE 100R16 - EN 857 2SC DN ...Q/YR
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TF2LT-04 1/4" 6.4mm 0.51" 13.0mm 6000 PSI 2.0" 50.8mm 0.19 lbs/ft
TF2LT-06 3/8" 9.5mm 0.66" 16.8mm 5000 PSI 2.5" 63.5mm 0.27 lbs/ft
TF2LT-08 1/2" 12.7mm 0.81" 20.6mm 4500 PSI 3.5" 88.9mm 0.35 lbs/ft
TF2LT-10 5/8" 15.6mm 0.92" 23.4mm 4000 PSI 3.9" 99.1mm 0.41 lbs/ft
TF2LT-12 3/4" 19.1mm 1.09" 27.6mm 3500 PSI 4.7" 119.4mm 0.55 lbs/ft
TF2LT-16 1" 25.4mm 1.40" 35.5mm 3000 PSI 5.9" 149.9mm 0.82 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
