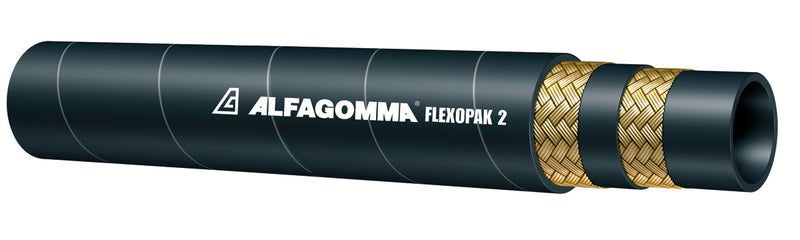

TF2ST-04 Alfagomma by Kuriyama | TF2ST Series | SAE 100R16 | SUPERTUFF Hydraulic Hose | 2-Wire Braid | 1/4" ID | 0.51" OD | 6000 PSI

TF2ST-04 Alfagomma by Kuriyama | TF2ST Series | SAE 100R16 | SUPERTUFF Hydraulic Hose | 2-Wire Braid | 1/4" ID | 0.51" OD | 6000 PSI

Save $1.59 Save $1.59
$5.57
$5.57 - $5.57
$5.57
$3.98
$3.98 - $3.98
$3.98

Kuriyama of America Inc.
Alfagomma | TF2ST Series | SAE 100R16 | SUPERTUFF Hydraulic Hose | 2-Wire Braid

High pressure service with tight bends with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, air and water.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TF2ST-04 Kuriyama
Brand: Alfagomma, SUPERTUFF
Series: TF2ST Series
Hose Color(s): Black
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.51in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R16, EN 857 2SC, MSHA IC-152/7
Compatible with the following Series: B Series  |   AF1 Series
Application: High pressure service with tight bends with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, airand water. Excellent impulse performance, exceeding 1,000,000 cycles when tested with appropriate ALFAGOMMA couplings. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. SAE Rating: Exceeds SAE 100R16
Other Ratings: Meets or exceeds EN 857 2SC
MSHA IC-152/7 approved flame resistance		 Tube: Synthetic rubber, black.
Reinforcement: Two high tensile steel wire braids, separated by a layer of synthetic rubber. Cover: Synthetic rubber, black... weather, oil, fuel, ozone and excellent abrasion-resistant.
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation.
Maximum Operating Temperature: +257°F (+125°C)		 Air Maximum Temperature: +160°F (+70°C) Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOPAK 2 SUPERTUFF ID ...WP ... MPa (...PSI) - EXCEEDS SAE 100 R16 -EN 857 2SC ...DN ... MSHA IC-152/7 ...Q/YR
Other Features:
  • SUPERTUFF is a durable hose cover by ALFAGOMMA, designed to reduce downtime from hose failure.
  • Highly abrasion- and impact-resistant - ideal for harsh environments.
  • Outperforms standard rubber and polyurethane covers in tests.
  • Low-friction surface helps it slide over rough surfaces.
  • SUPERTUFF is an integrated design - bonded to the hose, not an added sleeve.
  • Won't detach under pressure or movement.
  • Great for machinery with exposed hydraulic lines.
  • Replaces the need for plastic spiral guards.
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TF2ST-04 1/4" 6.4mm 0.51" 13.0mm 6000 PSI 2.0" 50.8mm 0.19 lbs/ft
TF2ST-06 3/8" 9.5mm 0.66" 16.8mm 5000 PSI 2.5" 63.5mm 0.27 lbs/ft
TF2ST-08 1/2" 12.7mm 0.81" 20.6mm 4500 PSI 3.5" 88.9mm 0.35 lbs/ft
TF2ST-10 5/8" 15.9mm 0.92" 23.4mm 4000 PSI 3.9" 99.1mm 0.41 lbs/ft
TF2ST-12 3/4" 19.1mm 1.09" 27.6mm 3500 PSI 4.7" 119.4mm 0.55 lbs/ft
TF2ST-16 1" 25.4mm 1.40" 35.5mm 3000 PSI 5.9" 149.9mm 0.82 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
