TG160 Dixon Carbon Steel Tubular External Swage Stem with a Grooved End - 10" Hose ID

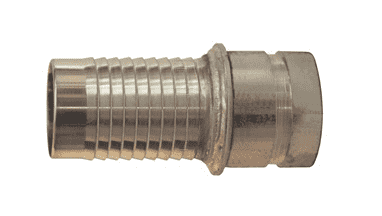

TG160 Dixon Valve Carbon Steel Tubular External Swage Stem with a Grooved End - 10" Hose ID

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Holedall External Swage Stems - Grooved End - Tubular Type - Carbon Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: TG160 Dixon
Shape (Orientation): Straight
Material(s): Plated Carbon Steel
Applications:
  • Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as L.P. gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose.
  • Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
Features:
  • Tubular type.
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Part Number Hose ID Style Max Working Pressure Weight (Lbs.)
TG20 1-1/4" Standard 600 PSI 0.7190
TG24 1-1/2" Standard 600 PSI 0.8440
TG32 2" Standard 600 PSI 1.2500
TG40 2-1/2" Standard 600 PSI 2.3800
TG48 3" Standard 600 PSI 3.3000
TG64 4" Standard 500 PSI 5.6560
TG80 5" Standard 450 PSI 7.8800
TG96 6" Standard 400 PSI 10.8500
TG128 8" Standard 350 PSI 23.0000
TG160 10" Standard 300 PSI 37.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
