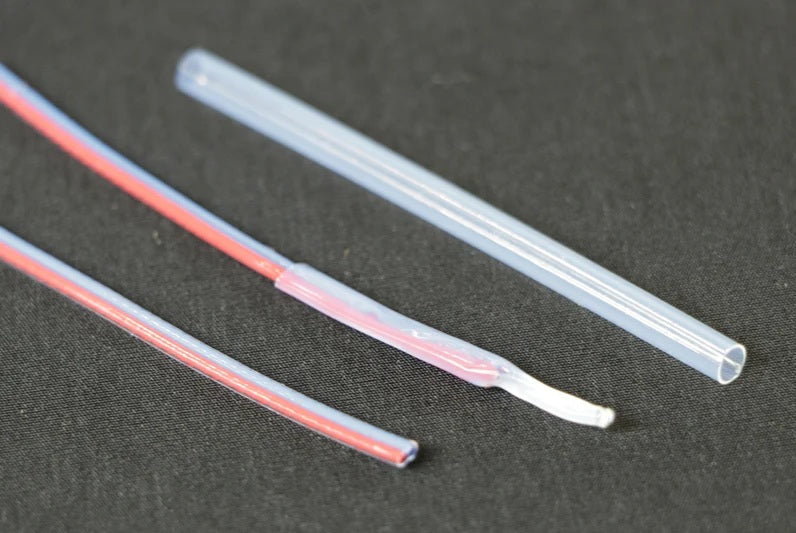

THFE4.440012 by Saint Gobain | FEP 1.3X Heat Shrink Tubing | 0.349" ID Recovered x 0.440" ID Expanded x .012" Wall | 4' Package Length

Minimum Order Quantity: 25 Units

Save $4.25

$21.26

$21.26 - $21.26

$21.26

$17.01

$17.01 - $17.01

$17.01

Saint Gobain
FEP 1.3X Heat Shrink Tubing

FEP heat shrink tubing is an ideal solution for applications which require protection against high temperatures and chemical resistance.

FEP heat shrink tubing shrinks to its original size when heat is applied, forming a tight jacket over the substrate material.

No by the foot sales. This is a Packaged Length product.

Specifications for Variant SKU: THFE4.440012 Saint Gobain \| 4 \|
Brand:	Versilon
Series:	Heat Shrink
Hose Color(s):	Clear/Semi-Clear
Tubing Construction:	Florinated Ethylene Propylene
Applicable Specs & Approvals:	Applicable FDA Requirements

Heat Shrink Tubing

FEP 1.3X Heat Shrink Tubing

Commonly used to protect sensors, rollers, and wires. FEP heat shrink tubing is an ideal solution for applications which require protection against high temperatures and chemical resistance. Sold in its expanded state, FEP heat shrink tubing shrinks to its original size when heat is applied, forming a tight jacket over the substrate material.

1

What is this product used for?

Temperature sensors and probe encapsulation.
Automotive sensor protection.
Wires and cables insulation.

2

What are the key specifications?

Tube

FEP

Cover

FEP

Reinforcement

None

Colors

Translucent

Maximum Recommended Operating Temp. °F (°C)

Working temperature up to +200°F (+392°C)

Minimum Recommended Operating Temp. °F (°C)

-200°F (-328°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?

Shrink ratio up to 1.6:1.
Highly resistant to aggressive chemicals.
Working temperature up to +200°C (+392°F).
Shrink temperature: >215°C.
Excellent electrical insulation properties.
Easily applied to a variety of substrates.

4

Which sizes or configurations are available?

Part Number	Inside Diameter Expanded (in.)	Inside Diameter Recovered (in.)	Recovered Wall Thickness (in.)	AWG Size (American Wire Gauge)	Length
THFE4.045008	0.045"	0.039"	0.008"	20	4ft
THFE4.060008	0.060"	0.049"	0.008"	18	4ft
THFE4.115009	0.115"	0.089"	0.009"	12	4ft
THFE4.141010	0.414"	0.114"	0.010"	10	4ft
THFE4.158010	0.158"	0.124"	0.010"	9	4ft
THFE4.180010	0.180"	0.143"	0.010"	8	4ft
THFE4.290011	0.290"	0.226"	0.011"	4	4ft
THFE4.310011	0.310"	0.249"	0.011"	3	4ft
THFE4.365012	0.365"	0.280"	0.012"	2	4ft
THFE4.400012	0.400"	0.311"	0.012"	1	4ft
THFE4.440012	0.440"	0.349"	0.012"	0	4ft
Fractional Sizes
THFE4.500015	0.500"	0.383"	0.015"	3/8"	8ft
THFE4.580020	0.580"	0.448"	0.020"	7/16"	8ft
THFE4.666020	0.666"	0.510"	0.020"	1/2"	8ft
THFE4.830025	0.830"	0.637"	0.025"	5/8"	8ft
THFE4.100030	1.000"	0.764"	0.030"	3/4"	8ft
THFE4.117035	1.170"	0.891"	0.035"	7/8"	8ft
THFE4.133035	1.333"	1.020"	0.035"	1"	4ft
THFE4.200035	2.000"	1.520"	0.035"	1-1/2"	4ft

i

Recovered wall thickness tolerances are dependent on numerous application factors, such as shrinkage rate and shrunk ID.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain FEP Heat Shrink Tubing Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
