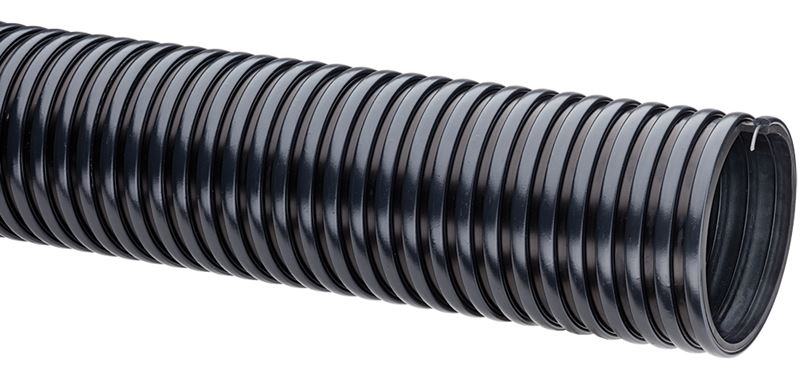

THT800X50 Tigerflex® Tiger™ HiTemp by Kuriyama | THT™ Series | Wire Reinforced Wet or Dry Material Handling Hose | EPDM | 8" ID | 9.06" OD | 50ft Length

$0.00 - $0.00

$0.00

$2,894.40

$2,894.40 - $2,894.40

$2,894.40

p>Kuriyama of America Inc.
Tigerflex® | Tiger™ "HiTemp" THT™ Series | Wire Reinforced Wet or Dry Material Handling Hose | EPDM

Ideal for demanding agricultural and industrial use.

This hose handles liquid fertilizer, fly ash, slurry, and hydroexcavation, as well as material transfer and vacuum service with industrial equipment and sewer truck booms.

Made in the USA.

Package Quantity: 50 Foot

Specifications for Variant SKU: THT800X50 Kuriyama \| 50 \|
Brand:	Tiger HiTemp, Tigerflex
Series:	THT Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	9.06in
Tubing Construction:	EPDM
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Tube, Outer Helix Protection

High-Temperature Material Handling Hose

Kuriyama Tigerflex™ THT Series

Wire-reinforced EPDM hose designed for industrial vacuum equipment, hydroexcavation, slurry handling and other demanding material-transfer applications at temperatures up to 220°F.

⚙

Wire Reinforced

Steel helical wire supports higher-temperature service

♨

Heat Resistant

Rated for temperatures up to 220°F

⚡

Static Dissipative

Tube and grounding wire help dissipate static charge

❄

Cold-Flex

Remains flexible in subzero temperatures

1

What is this product used for?

Agricultural liquid fertilizer
Fly ash collection
Hydroexcavation
Industrial vacuum equipment
Material chutes
Milling machine scrap recovery
Sewer truck boom hose
Slurry handling

2

What are the key specifications?

Tube

EPDM

Reinforcement

Polyethylene helix with steel helical wire

Cover

Convoluted design

Temperature Range

-40°F (-40°C) to +220°F (+104°C)

Compliance

RoHS

Country of Origin

Made in the USA

3

What are the main product features?

Wire-Reinforced Helix — Durable steel helical wire provides strength and supports higher-temperature operation without hose deformation. The wire can be grounded for additional static dissipation.
Heat-Resistant Construction — Steel helical wire and EPDM materials support operation at temperatures as high as 220°F.
Static-Dissipative Tube — Specially formulated to help prevent static electricity buildup and support smooth material flow.
Cold-Flex Materials — Hose remains flexible in subzero temperatures.
Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
Made in the USA — Manufactured in the United States.

4

Which sizes and lengths are available?

Part Number	Inside Diameter		Outside Diameter		Working Pressure		Vacuum Rating		Minimum Bending Radius	Length	Weight
Part Number	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	at 68°F	ft	lbs/ft
THT300X100	3"	76.2	3.59"	91.2	40 PSI	33 PSI	Full	28 in Hg	5-1/2"	100	1.33
THT400X100	4"	101.6	4.63"	117.6	29 PSI	21 PSI	Full	26 in Hg	5-1/2"	100	1.90
THT500X100	5"	127.0	5.78"	146.8	25 PSI	19 PSI	Full	25 in Hg	8-1/2"	100	2.95
THT600X50	6"	152.4	6.87"	178.4	19 PSI	14 PSI	27 in Hg	24 in Hg	10"	50	3.65
THT600X100	6"	152.4	6.87"	178.4	19 PSI	14 PSI	27 in Hg	24 in Hg	10"	100	3.65
THT800X50	8"	204.8	9.06"	229.8	14 PSI	10 PSI	27 in Hg	24 in Hg	15"	50	5.94

5

Where can I find product documents?

PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i

The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 50- and 100-foot lengths, depending on hose size.

⚠ CAUTION: The helix wire is designed to help dissipate static charge when extracted and connected to ground. Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.
