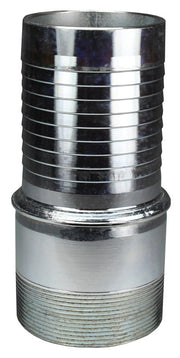

TM64-42 by Dixon Valve | Special Holedall® External Swage Stem | Use with F64-Z Ferrule | Tubular Type | 4" Male NPT x 4" Hose Barb | Carbon Steel

TM64-42 by Dixon Valve | Special Holedall® External Swage Stem | Use with F64-Z Ferrule | Tubular Type | 4" Male NPT x 4" Hose Barb | Carbon Steel

Save $9.48 Save $9.48
$85.29
$85.29 - $85.29
$85.29
$75.81
$75.81 - $75.81
$75.81

Dixon Valve
Holedall® Special External Swage Stem | Grooved End x Hose Barb

Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as:

  • Oil & Suction Discharge Hose
  • Barge & Dock Loading and Unloading Hose
  • L.P. Gas Hose
  • Anhydrous Ammonia Hose
  • Acid Chemical Hose
  • Air & Water Hose


    •
    Specifications for Variant SKU: TM64-42 Dixon
    Brand: Holedall
    Series: TM Style
    Shape (Orientation): Straight
    Ends Configuration: 4in Male NPT, 4in Hose Barb
    Material(s): Plated Carbon Steel
    Compatible with the following Series: Style F
    Features:
    • Tubular type.
    • Provides long-lasting efficiency and safety.
    • Lightweight coupling consisting of ferrule and stem.
    • Streamlined, no protrusions to snag on equipment.
    Use:
    • Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
    How It Works:
    • The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose.
    • A hydraulic ram is the only piece of machinery necessary to accomplish the coupling.
    • Couplings can be swaged or crimped.
    Safety Notes:
    • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
    • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
    • Do not use a wrench or vice on ferrule.
    • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
    • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
    • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that.
      • particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide.
    • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
    • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility.
    • For applications other than the ones list, please consult Dixon.
    Part Number Material Description
    TM64-42 Carbon Steel Use with F64-Z Ferrule | Tubular Type | 4" Male NPT x 4" Hose Barb
    TML64-42 Carbon Steel Extra Long | Tubular Type | 4" Male NPT x 4" Hose ID
    TM96-42 Plated Carbon Steel Use with F96-Z Ferrule | Tubular Type | 6" Male NPT x 6" Hose ID
    TMR96-42 316 Stainless Steel Use with FL96-Z Ferrule | Tubular Type | 6" Male NPT x 6" Hose ID
    TML96-42 Carbon Steel Use with FL96-Z Ferrule | Long | Tubular Type | 6" Male NPT x 6" Hose ID
    TP96-42 Unplated Carbon Steel Use with F96-Z Ferrule | Beveled End for Welding | Tubular Type | 6" Beveled End x 6" Hose ID
    TG96-42 Plated Carbon Steel Use with F96-Z Ferrule | Tubular Type | 6" Grooved End x 6" Hose ID
    TM128-42 Plated Carbon Steel Use with F128-X Ferrule | Tubular Type | 8" Male NPT x 8" Hose ID
    TP128-42 Unplated Carbon Steel Beveled End for Welding | Tubular Type | 8" Beveled End x 8" Hose ID
    TG128-42 Plated Carbon Steel Use with F128-X Ferrule | Tubular Type | 8" Grooved End x 8" Hose ID
