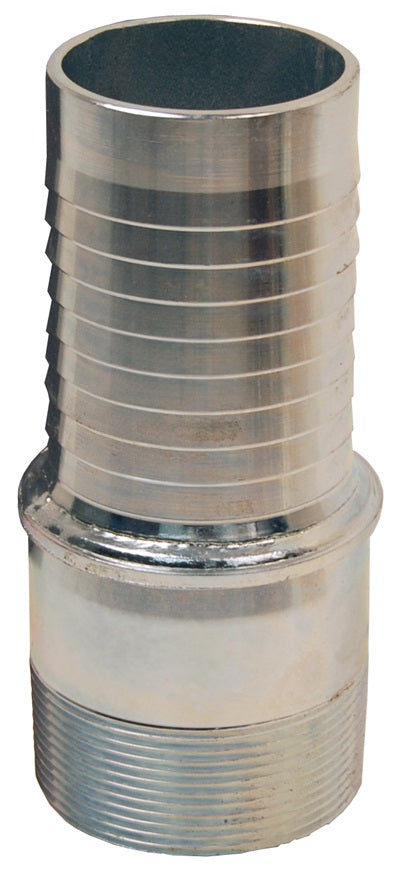

TML96-42 by Dixon Valve | Special Holedall® External Swage Stem | Use with FL96-Z Ferrule | Long | Tubular Type | 6" Male NPT x 6" Hose ID | Carbon Steel

Save $22.13

$199.14

$199.14 - $199.14

$199.14

$177.01

$177.01 - $177.01

$177.01

Dixon Valve
Holedall® Special External Swage Stem | Grooved End x Hose Barb

Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as:

Oil & Suction Discharge Hose

Barge & Dock Loading and Unloading Hose

L.P. Gas Hose

Anhydrous Ammonia Hose

Acid Chemical Hose

Air & Water Hose

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: TML96-42 Dixon
Brand:	Holedall
Series:	TML Style
Shape (Orientation):	Straight
Ends Configuration:	6in Male NPT, 6in Hose Barb
Material(s):	Plated Carbon Steel
Special Properties:	Long
Compatible with the following Series:	Style FL

Features:
Tubular type. Provides long-lasting efficiency and safety. Lightweight coupling consisting of ferrule and stem. Streamlined, no protrusions to snag on equipment.
Use:
Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
How It Works:
The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Couplings can be swaged or crimped.
Safety Notes:
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that. particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility. For applications other than the ones list, please consult Dixon.

Part Number	Material	Description
TM64-42	Carbon Steel	Use with F64-Z Ferrule \| Tubular Type \| 4" Male NPT x 4" Hose Barb
TML64-42	Carbon Steel	Extra Long \| Tubular Type \| 4" Male NPT x 4" Hose ID
TM96-42	Plated Carbon Steel	Use with F96-Z Ferrule \| Tubular Type \| 6" Male NPT x 6" Hose ID
TMR96-42	316 Stainless Steel	Use with FL96-Z Ferrule \| Tubular Type \| 6" Male NPT x 6" Hose ID
TML96-42	Carbon Steel	Use with FL96-Z Ferrule \| Long \| Tubular Type \| 6" Male NPT x 6" Hose ID
TP96-42	Unplated Carbon Steel	Use with F96-Z Ferrule \| Beveled End for Welding \| Tubular Type \| 6" Beveled End x 6" Hose ID
TG96-42	Plated Carbon Steel	Use with F96-Z Ferrule \| Tubular Type \| 6" Grooved End x 6" Hose ID
TM128-42	Plated Carbon Steel	Use with F128-X Ferrule \| Tubular Type \| 8" Male NPT x 8" Hose ID
TP128-42	Unplated Carbon Steel	Beveled End for Welding \| Tubular Type \| 8" Beveled End x 8" Hose ID
TG128-42	Plated Carbon Steel	Use with F128-X Ferrule \| Tubular Type \| 8" Grooved End x 8" Hose ID
