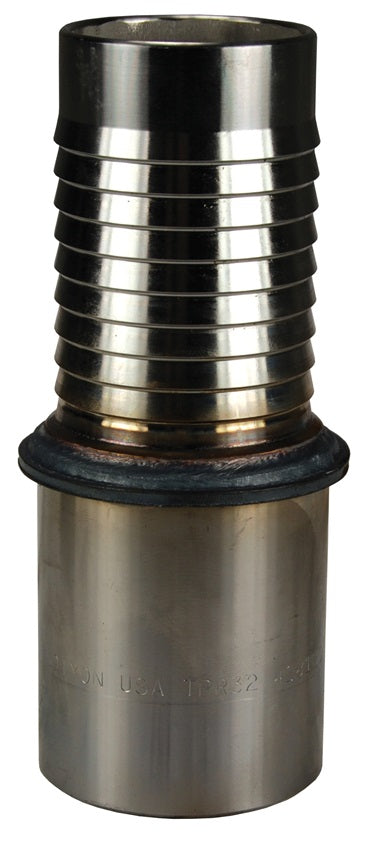

TPR64 by Dixon Valve | Holedall® External Swage Stem | Beveled End for Welding | Tubular Type | 4" Beveled End x 4" Hose ID | 316 Stainless Steel

Save $23.07

$207.64

$207.64 - $207.64

$207.64

$184.57

$184.57 - $184.57

$184.57

Dixon Valve
Holedall® External Swage Stem | Tubular Type | Beveled End for Welding | Beveled End x Hose Barb

Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as:

Oil & Suction Discharge Hose

Barge & Dock Loading and Unloading Hose

L.P. Gas Hose

Anhydrous Ammonia Hose

Acid Chemical Hose

Air & Water Hose

Quantity

Specifications for Variant SKU: TPR64 Dixon
Brand:	Holedall
Series:	TPR Syle
Shape (Orientation):	Straight
Ends Configuration:	4in Hose Barb, 4in Weld End
Material(s):	316 Stainless Steel
Compatible with the following Series:	Style F

Features:
Tubular type. Provides long-lasting efficiency and safety. Lightweight coupling consisting of ferrule and stem. Streamlined, no protrusions to snag on equipment.
Use:
Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
How It Works:
The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Couplings can be swaged or crimped.
Safety Notes:
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that. particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility. For applications other than the ones list, please consult Dixon.

Unplated Carbon Steel Part Number	316 Stainless Steel Part Number	LONG STYLE Unplated Carbon Steel Part Number	Size
TP24	-	-	1-1/2"
TP32	TPR32	TPL32	2"
TP40	-	-	2-1/2"
TP48	TPR48	TPL48	3"
TP64	TPR64	TPL64	4"
TP80	-	-	5"
TP96	-	TPL96	6"
TP128	-	TPL128	8"
TP160	-	-	10"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
