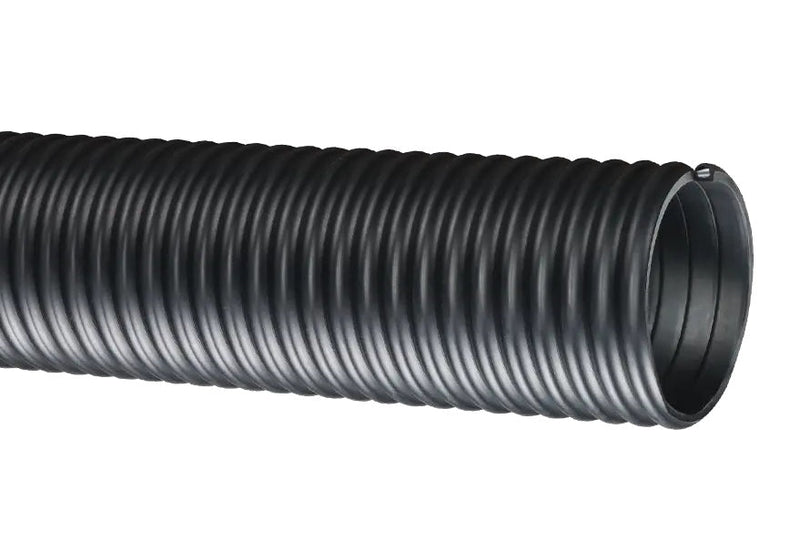

TR1-600X100 Tigerflex® by Kuriyama | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose | Rubber Blend | 6" ID | 7.03" OD | 100ft Length

TR1-600X100 Tigerflex® by Kuriyama | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose | Rubber Blend | 6" ID | 7.03" OD | 100ft Length

$0.00 - $0.00
$0.00
$3,684.00
$3,684.00 - $3,684.00
$3,684.00
p>Kuriyama of America Inc.
Tigerflex® | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose

Engineered for extreme-duty service.

Ideal for extreme-duty vacuum and material handling, including fly ash, grain, hydro excavation, and abrasive media such as rock, sand, gravel, and slurry.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: TR1-600X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TR1 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 7.03in
Tubing Construction: SBR
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Tube, Outer Helix Protection
Heavy-Duty Material Handling Hose

Kuriyama Tigerflex™ TR1 Series

Heavy-duty rubber hose designed for abrasive material handling, industrial vacuum equipment, hydro excavation and demanding suction applications.

⚙

Abrasion Resistant

Engineered for demanding material-handling applications

⚡

Static Dissipative

Formulated to help reduce static electricity buildup

❄

Cold-Flex

Remains flexible in subzero temperatures

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Fly ash collection
  • Grain handling
  • Hydro excavation
  • Industrial vacuum equipment
  • Heavy-duty abrasive material handling
  • Milling machine scrap recovery
  • Rock, gravel, sand and crushed concrete vacuuming
  • Sewer truck boom hose
  • Shot blast recovery
  • Slurry handling
2

What are the key specifications?
Tube

Blended rubber

Reinforcement

Rigid PVC helix

Cover

Convoluted design

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Superior Rubber Compounds — Specially engineered compounds provide abrasion resistance, flexibility, static dissipation, light weight and long-lasting durability.
  • Static-Dissipative Tube — Specially formulated to help prevent static electricity buildup and support smooth material flow.
  • Cold-Flex Materials — Hose remains flexible in subzero temperatures.
  • Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
TR1-150X100 1-1/2" 38.5 1.94" 49.2 35 PSI 26 PSI Full 28 in Hg 1.5" 100 0.47
TR1-200X50 2" 50.8 2.38" 60.5 32 PSI 23 PSI Full 26 in Hg 1.5" 50 0.65
TR1-200X100 2" 50.8 2.38" 60.5 32 PSI 23 PSI Full 26 in Hg 1.5" 100 0.65
TR1-250X50 2-1/2" 63.4 3.05" 77.5 30 PSI 22 PSI Full 26 in Hg 2.0" 50 0.84
TR1-250X100 2-1/2" 63.4 3.05" 77.5 30 PSI 22 PSI Full 26 in Hg 2.0" 100 0.84
TR1-300X50 3" 76.2 3.56" 90.5 28 PSI 20 PSI Full 26 in Hg 2.5" 50 0.90
TR1-300X100 3" 76.2 3.56" 90.5 28 PSI 20 PSI Full 26 in Hg 2.5" 100 0.90
TR1-400X50 4" 101.6 4.67" 118.5 26 PSI 18 PSI Full 26 in Hg 4.5" 50 1.73
TR1-400X100 4" 101.6 4.67" 118.5 26 PSI 18 PSI Full 26 in Hg 4.5" 100 1.73
TR1-500X50 5" 126.8 5.73" 145.5 21 PSI 16 PSI 28 in Hg 24 in Hg 5.0" 50 3.00
TR1-500X100 5" 126.8 5.73" 145.5 21 PSI 16 PSI 28 in Hg 24 in Hg 5.0" 100 3.00
TR1-600X50 6" 153.4 7.03" 178.8 19 PSI 13 PSI 28 in Hg 24 in Hg 9.5" 50 4.00
TR1-600X100 6" 153.4 7.03" 178.8 19 PSI 13 PSI 28 in Hg 24 in Hg 9.5" 100 4.00
TR1-800X50 8" 204.8 9.27" 255.6 19 PSI 13 PSI 27 in Hg 23 in Hg 14" 50 7.40
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 50- and 100-foot lengths, depending on hose size.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
