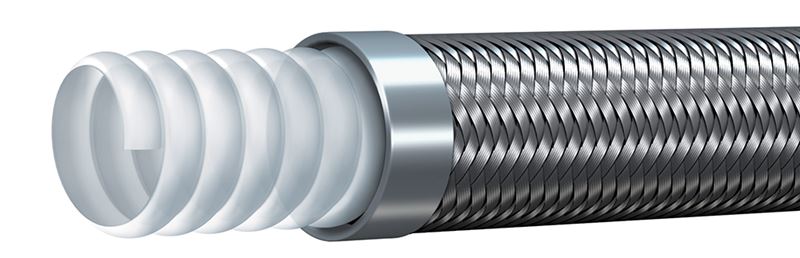

TR14C-10 Alfagomma by Kuriyama | TR14C Series | SAE 100R14 | High Temp Convoluted Stainless Steel Braided Hose | 5/8" ID | 0.87" OD | 1200 PSI

TR14C-10 Alfagomma by Kuriyama | TR14C Series | SAE 100R14 | High Temp Convoluted Stainless Steel Braided Hose | 5/8" ID | 0.87" OD | 1200 PSI

Save $7.66 Save $7.66
$26.81
$26.81 - $26.81
$26.81
$19.15
$19.15 - $19.15
$19.15

Kuriyama of America Inc.
Alfagomma | TR14C Series | SAE 100R14 | High Temp Convoluted Stainless Steel Braided Hose

Compatible with air, gas, steam, fuel, oil, chemicals, cryogenic gas, compressor discharge, steam piping, diathermic oil, automotive, marine, and food uses.

Suitable for solvents, pigments, paint, and hydraulic lines; not for molten alkali metals or high-temp halogens.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TR14C-10 Kuriyama
Brand: Alfagomma
Series: TR14C Series
Internal Diameter: 0.625in
Outer Diameter: 0.87in
Tubing Construction: PTFE
Cover Construction: 304 Stainless Steel
Applicable Specs & Approvals: SAE 100R14, FDA US Pharmacopeia Class VI
Application: Compressed air, gas, steam, fuel, oil, chemical and pharmaceutical products, particularly suitable for steam piping on injection moulding machines, diathermic oil installations, charging lines for cryogenic gas, compressor discharge lines, automotive, pharmaceutical and food sectors. Solvents, pigments and paint transfer lines. Hydraulic lines in power steering marine applications. Not suitable for molten alkali metals and halogens at high temperature. SAE Rating: SAE 100R14
Other Ratings: AISI 304
FDA US Pharmacopeia - Class VI		 Tube: Seamless Helical Convoluted PTFE - high mechanical and vibration resistance, low permeability, dielectrical, fire resistant, food grade (FDA, DVGW, BFR compliant). Chemically inert, non-sticking, ozone and weather resistant.
Reinforcement: High tensile stainless steel braid AISI 304. Cover: High Tensile Stainless Steel Braid.
Service Temperature Range: -76°F (-60°C) to +500°F (+260°C) constant operation Air Maximum Temperature: -
Branding: N/A
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TR14C-06 3/8" 9.5mm 0.62" 14.7mm 2000 PSI 0.79" 20mm 0.16 lbs/ft
TR14C-08 1/2" 12.7mm 0.74" 18.8mm 1500 PSI 0.98" 25mm 0.19 lbs/ft
TR14C-10 5/8" 15.9mm 0.87" 22.1mm 1200 PSI 2.00" 51mm 0.22 lbs/ft
TR14C-12 3/4" 19.1mm 0.97" 24.6mm 1000 PSI 2.52" 64mm 0.27 lbs/ft
TR14C-16 1" 25.4mm 1.29" 32.8mm 670 PSI 3.50" 89mm 0.37 lbs/ft
TR14C-20 1-1/4" 31.8mm 1.60" 40.7mm 525 PSI 5.00" 127mm 0.46 lbs/ft
TR14C-24 1-1/2" 38.1mm 1.90" 48.2mm 450 PSI 5.98" 152mm 0.60 lbs/ft
TR14C-32 2" 50.8mm 2.42" 61.5mm 345 PSI 7.87" 200mm 0.84 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.
