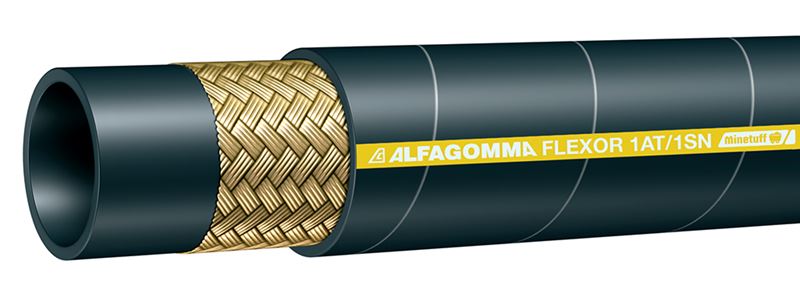

TR1MT-05 Alfagomma by Kuriyama | TR1MT Series | SAE 100 R1AT/R1S | Minetuff Hydraulic Hose | 1-Wire Braid | 5/16" ID | 0.56" OD | 3120 PSI

TR1MT-05 Alfagomma by Kuriyama | TR1MT Series | SAE 100 R1AT/R1S | Minetuff Hydraulic Hose | 1-Wire Braid | 5/16" ID | 0.56" OD | 3120 PSI

Save $0.91 Save $0.91
$3.18
$3.18 - $3.18
$3.18
$2.27
$2.27 - $2.27
$2.27

Kuriyama of America Inc.
Alfagomma | TR1MT Series | SAE 100 R1AT/R1S | Minetuff Hydraulic Hose | 1-Wire Braid

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TR1MT-05 Kuriyama
Brand: Alfagomma, Minetuff
Series: TR1MT Series
Hose Color(s): Black
Dash Size: -05
Internal Diameter: 0.3125in
Outer Diameter: 0.56in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R1-AT, EN853, ISO 1436-1, MSHA IC-152/16
Compatible with the following Series: B Series  |   AF1 Series
Application: Medium pressure service with high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 psi (1.7 Mpa) the cover should be pin-pricked. SAE Rating: SAE 100 R1AT/R1S
Other Ratings: ISO 1436-1
EN 853 1SN
MSHA IC-152/16 Approved Flame Resistance		 Tube: Seamless synthetic rubber, black, oil-resistant.
Reinforcement: High tensile steel wire braid Cover: Synthetic rubber, black, weather, oil, fuel, ozone and abrasion-resistant
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation Air Maximum Temperature: +160°F (+70°C)
Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOR 1SN ID ...WP ...MPa (...PSI) - SAE 100 R1AT - EN 853 1SN MSHA IC-152/16...Q/YR DN ...
Other Features:
  • Excellent abrasion resistance (10 times higher than EN-ISO 6945 requirements).
  • Reduces the need for any protective sleeve in applications requiring high abrasion resistance.
  • UV and ozone resistance (hose ageing reduction).
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TR1MT-03 3/16" 4.8mm 0.44" 11.2mm 3630 PSI 3.6" 090.0mm 0.10 lbs/ft
TR1MT-04 1/4" 6.4mm 0.50" 12.7mm 3250 PSI 3.9" 099.1mm 0.13 lbs/ft
TR1MT-05 5/16" 7.9mm 0.56" 14.2mm 3120 PSI 4.5" 114.3mm 0.16 lbs/ft
TR1MT-06 3/8" 9.5mm 0.65" 16.5mm 2610 PSI 5.1" 129.5mm 0.20 lbs/ft
TR1MT-08 1/2" 12.7mm 0.78" 19.9mm 2320 PSI 7.1" 180.3mm 0.26 lbs/ft
TR1MT-10 5/8" 15.9mm 0.91" 23.0mm 1900 PSI 7.9" 200.7mm 0.29 lbs/ft
TR1MT-12 3/4" 19.1mm 1.06" 27.0mm 1530 PSI 9.5" 241.3mm 0.37 lbs/ft
TR1MT-16 1" 25.4mm 1.38" 35.0mm 1280 PSI 11.8" 299.7mm 0.59 lbs/ft
TR1MT-20 1-1/4" 31.8mm 1.66" 42.1mm 920 PSI 16.5" 419.1mm 0.71 lbs/ft
TR1MT-24 1-1/2" 38.1mm 1.94" 49.2mm 730 PSI 19.7" 500.4mm 0.90 lbs/ft
TR1MT-32 2" 50.8mm 2.46" 62.4mm 600 PSI 24.8" 629.9mm 1.24 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.
