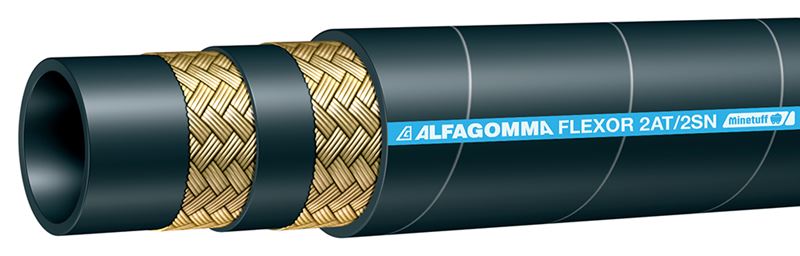

TR2MT-04 Alfagomma by Kuriyama | TR2MT Series | SAE 100 R2AT/R2S | Minetuff Hydraulic Hose | 2-Wire Braid | 1/4" ID | 0.57" OD | 5800 PSI

TR2MT-04 Alfagomma by Kuriyama | TR2MT Series | SAE 100 R2AT/R2S | Minetuff Hydraulic Hose | 2-Wire Braid | 1/4" ID | 0.57" OD | 5800 PSI

Save $0.93 Save $0.93
$3.25
$3.25 - $3.25
$3.25
$2.32
$2.32 - $2.32
$2.32

Kuriyama of America Inc.
Alfagomma | TR2MT Series | SAE 100 R2AT/R2S | Minetuff Hydraulic Hose | 2-Wire Braid

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TR2MT-04 Kuriyama
Brand: Alfagomma, Minetuff
Series: TR2MT Series
Hose Color(s): Black
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.57in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R2AT, ISO 1436-1, EN 853 2SN, MSHA IC-152/16
Compatible with the following Series: B Series  |   AF2 Series
Application: Medium pressure service with high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. SAE Rating: SAE 100 R2AT/R2S
Other Ratings: ISO 1436-1
EN 853 2SN
MSHA IC-152/16 Approved Flame Resistance		 Tube: Seamless synthetic rubber, black, oil-resistant.
Reinforcement: High tensile steel wire braid Cover: Synthetic rubber, black, weather, oil, fuel, ozone and abrasion-resistant
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation Air Maximum Temperature: +160°F (+70°C)
Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOR 2SN ID ...WP ...MPa (...PSI) - SAE 100R2AT - EN 853 2SN DN ... MSHA IC-152/16 - Q/YR
Other Features:
  • Excellent abrasion resistance (10 times higher than EN-ISO 6945 requirements).
  • Reduces the need for any protective sleeve in applications requiring high abrasion resistance.
  • UV and ozone resistance (hose ageing reduction).
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TR2MT-04 1/4" 6mm 0.57" 14.5mm 5800 PSI 4.0" 100mm 0.22 lbs/ft
TR2MT-05 5/16" 8mm 0.63" 16.1mm 5000 PSI 4.6" 115mm 0.23 lbs/ft
TR2MT-06 3/8" 9.5mm 0.72" 18.2mm 4800 PSI 4.9" 124.5mm 0.32 lbs/ft
TR2MT-08 1/2" 12.7mm 0.84" 21.3mm 4000 PSI 6.8" 172.7mm 0.36 lbs/ft
TR2MT-10 5/8" 15.9mm 0.96" 24.5mm 3630 PSI 7.8" 198.1mm 0.45 lbs/ft
TR2MT-12 3/4" 19.1mm 1.13" 28.6mm 3120 PSI 9.4" 238.8mm 0.58 lbs/ft
TR2MT-16 1" 25.4mm 1.44" 36.6mm 2400 PSI 11.8" 299.7mm 0.83 lbs/ft
TR2MT-20 1-1/4" 31.8mm 1.81" 46.0mm 1820 PSI 16.5" 419.1mm 1.19 lbs/ft
TR2MT-24 1-1/2" 38.1mm 2.08" 52.8mm 1310 PSI 19.6" 497.8mm 1.37 lbs/ft
TR2MT-32 2" 50.8mm 2.58" 65.6mm 1200 PSI 24.8" 629.9mm 1.86 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.
