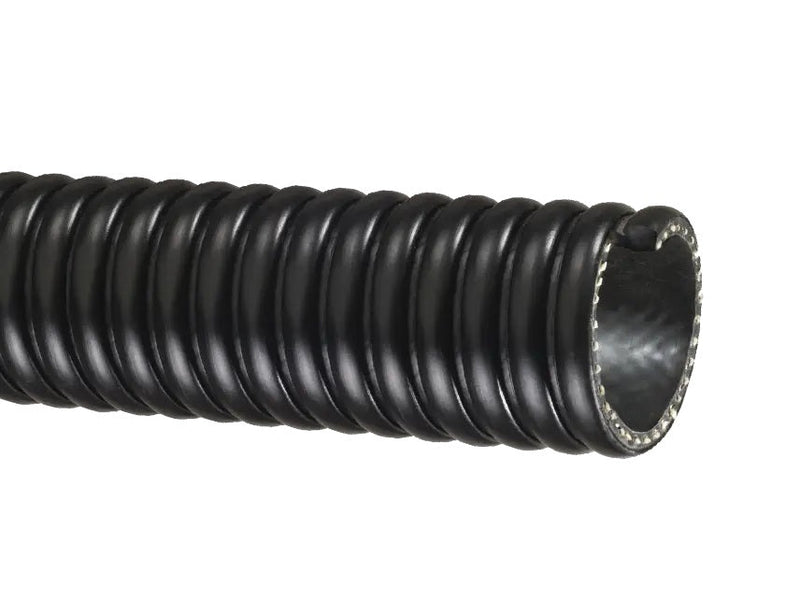

TSD150X100 Tigerflex® by Kuriyama | TSD™ Series | Fabric Reinforced Liquid Suction & Discharge Hose | EPDM | 1-1/2" ID | 2.00" OD | 100ft Length

Save $169.79

$602.99

$602.99 - $602.99

$602.99

$433.20

$433.20 - $433.20

$433.20

p>Kuriyama of America Inc.
Tigerflex® | TSD™ Series | Fabric Reinforced Liquid Suction & Discharge Hose | EPDM

Designed for demanding agricultural and industrial fluid transfer.

Ideal for liquid fertilizers, agri-foam systems, manure and wastewater handling, dewatering and trash pumps, and heavy-duty suction and discharge applications.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: TSD150X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	TSD Series
Hose Color(s):	Black
Internal Diameter:	1.50in
Outer Diameter:	2.00in
Tubing Construction:	EPDM
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

What are the Features?
Applications:	Agriculture liquid fertilizers. Agri-foam systems. Liquid manure handling. Pumps, rental and construction dewatering. Pumps, trash. Septic and wastewater handling. Suction and discharge. Water suction - heavy duty.
Tube:	Double-ply EPDM.	Reinforcement:	Polyester fabric, Polyethylene helix.
Cover:	-	Service Temperature Range:	-40°F (-40°C) to +160°F (+71°C) (Actual service temperature range is application dependent)
Specifications:	RoHS (11) For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance. Fabric Reinforcement - Designed with high tensile strength polyester yarn jacket to handle both suction, and higher pressure discharge applications. "Cold-Flex" Materials - Hose remains flexible in subzero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle. Convoluted Outer Cover - Provides increased hose flexibility. Made in the USA. Note: Service life may vary depending on operating conditions and type of material being conveyed.

Part Number 100ft	ID		OD		Working Pressure (PSI)		Vacuum Rating in Hg		Min. Bending Radius	Weight
Part Number 100ft	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	at 68°F	lbs/ft
TSD125X100	1-1/4"	31.8mm	1.70"	43.2mm	100 PSI	75 PSI	Full	28 in Hg	3"	0.41 lbs
TSD150X100	1-1/2"	38.1mm	2.00"	50.7mm	100 PSI	75 PSI	Full	28 in Hg	3"	0.51 lbs
TSD200X100	2"	50.8mm	2.54"	64.5mm	100 PSI	75 PSI	Full	28 in Hg	5"	0.73 lbs
TSD300X100	3"	76.2mm	3.62"	92.0mm	90 PSI	65 PSI	Full	26 in Hg	8"	1.18 lbs
TSD400X100	4"	101.6mm	4.53"	121.0mm	75 PSI	50 PSI	Full	24 in Hg	9-1/2"	1.40 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
