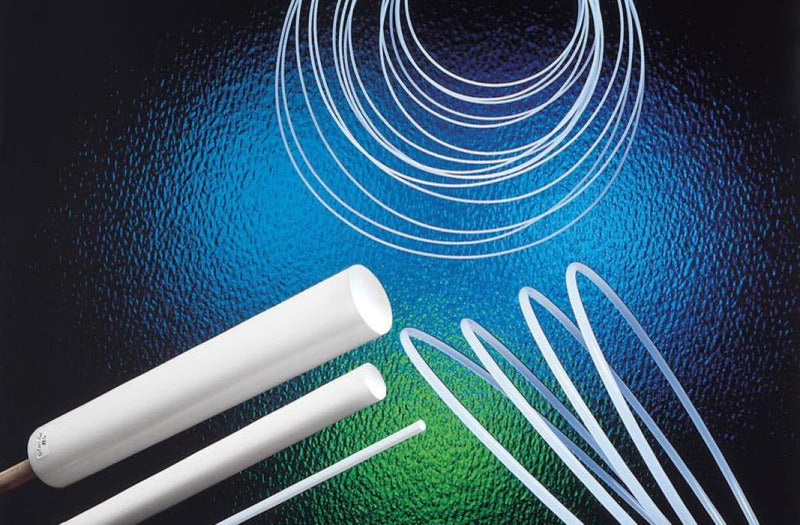

TSTZ83-0062-023-50 Versilon™ by Saint Gobain | ETFE Series | Radiation-Resistant Tubing | .016" ID x 1/16" OD x .023" Wall | Roll of 50 Feet

Save $43.17

$215.84

$215.84 - $215.84

$215.84

$172.67

$172.67 - $172.67

$172.67

Saint Gobain
Versilon® ETFE | Radiation-Resistant Tubing

Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.

No by the foot sales. This is a Packaged Length product.

Specifications for Variant SKU: TSTZ83-0062-023-50 Saint Gobain \| 50 \|
Brand:	Versilon
Series:	Versilon ETFE
Hose Color(s):	White/Off-White
Internal Diameter:	0.016in
Outer Diameter:	0.0625in

Fluoropolymer Flexible Tubing

Versilon® ETFE | Radiation-Resistant Tubing

Versilon® ETFE flexible tubing from Saint-Gobain offers improved mechanical properties over fluoropolymers such as FEP and PFA, and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C). Made from materials that meet ASTM standard D3159, Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.

1

What is this product used for?

Bearings
Electrical coatings
Fittings
Pump components
Valves

2

What are the key specifications?

Tube

N/A

Cover

N/A

Reinforcement

None

Colors

White/Opaque

Maximum Recommended Operating Temp. °F (°C)

300°F (150°C)

Brittleness by Impact Temp. °F (°C)

-150°F (-66°C)

Specifications

Materials meet ASTM standard D3159.

WARNING:

Not intended as an implant material!

3

What are the main product features?

Mechanical strength.
Abrasion resistant.
Broad temperature range.
Good chemical resistance.
Continuous service temperature 300°F (148°C).

4

Which sizes or configurations are available?

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)
TSTZ83-0062-021-50	0.020"	1/16"	0.021"
TSTZ83-0062-021.10	0.020"	1/16"	0.021"
TSTZ83-0062-023-50	0.016"	1/16"	0.023"
TSTZ83-0062-023.10	0.016"	1/16"	0.023"
TSTZ83-0125-016-50	3/32"	1/8"	0.016"
TSTZ83-0125-016.10	3/32"	1/8"	0.016"
TSTZ83-0125-031-50	1/16"	1/8"	0.031"
TSTZ83-0125-031.10	1/16"	1/8"	0.031"
TSTZ83-0250-031-50	3/16"	1/4"	1/32"
TSTZ83-0250-031.10	3/16"	1/4"	1/32"
TSTZ83-0250-062-50	1/8"	1/4"	1/16"
TSTZ83-0250-062.10	1/8"	1/4"	1/16"
TSTZ83-0312-040-50	0.232"	5/16"	0.040"
TSTZ83-0312-040.10	0.232"	5/16"	0.040"
TSTZ83-0375-048-50	0.278"	3/8"	0.048"
TSTZ83-0375-048.10	0.278"	3/8"	0.048"
TSTZ83-0500-062-50	3/8"	1/2"	1/16"
TSTZ83-0500-062.10	3/8"	1/2"	1/16"

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Versilon® ETFE Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
