TSTZ83-0125-016.10 Versilon™ by Saint Gobain | ETFE Series | Radiation-Resistant Tubing | 3/32" ID x 1/8" OD x .016" Wall | Roll of 100 Feet

TSTZ83-0125-016.10 Versilon™ by Saint Gobain | ETFE Series | Radiation-Resistant Tubing | 3/32" ID x 1/8" OD x .016" Wall | Roll of 100 Feet

Save $33.33 Save $33.33
$166.66
$166.66 - $166.66
$166.66
$133.33
$133.33 - $133.33
$133.33

Saint Gobain
Versilon® ETFE | Radiation-Resistant Tubing

Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: TSTZ83-0125-016.10 Saint Gobain | 100 |
Brand: Versilon
Series: Versilon ETFE
Hose Color(s): White/Off-White
Internal Diameter: 0.009375in
Outer Diameter: 0.125in
Fluoropolymer Flexible Tubing

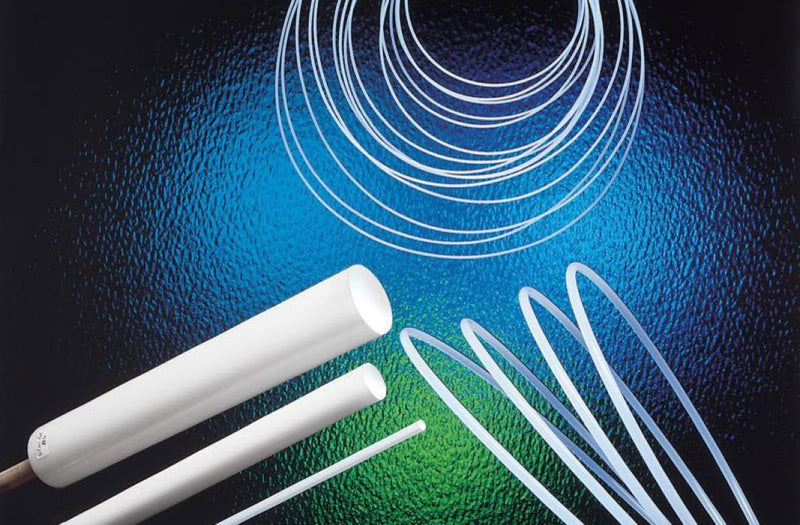

Versilon® ETFE | Radiation-Resistant Tubing

Versilon® ETFE flexible tubing from Saint-Gobain offers improved mechanical properties over fluoropolymers such as FEP and PFA, and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C). Made from materials that meet ASTM standard D3159, Versilon® ETFE tubing can be used to manufacture valves, fittings, bearings, pump components, and electrical coatings.

1

What is this product used for?
  • Bearings
  • Electrical coatings
  • Fittings
  • Pump components
  • Valves
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

White/Opaque

Maximum Recommended Operating Temp. °F (°C)

300°F (150°C)

Brittleness by Impact Temp. °F (°C)

-150°F (-66°C)

Specifications

Materials meet ASTM standard D3159.

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Mechanical strength.
  • Abrasion resistant.
  • Broad temperature range.
  • Good chemical resistance.
  • Continuous service temperature 300°F (148°C).
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)
TSTZ83-0062-021-50 0.020" 1/16" 0.021"
TSTZ83-0062-021.10 0.020" 1/16" 0.021"
TSTZ83-0062-023-50 0.016" 1/16" 0.023"
TSTZ83-0062-023.10 0.016" 1/16" 0.023"
TSTZ83-0125-016-50 3/32" 1/8" 0.016"
TSTZ83-0125-016.10 3/32" 1/8" 0.016"
TSTZ83-0125-031-50 1/16" 1/8" 0.031"
TSTZ83-0125-031.10 1/16" 1/8" 0.031"
TSTZ83-0250-031-50 3/16" 1/4" 1/32"
TSTZ83-0250-031.10 3/16" 1/4" 1/32"
TSTZ83-0250-062-50 1/8" 1/4" 1/16"
TSTZ83-0250-062.10 1/8" 1/4" 1/16"
TSTZ83-0312-040-50 0.232" 5/16" 0.040"
TSTZ83-0312-040.10 0.232" 5/16" 0.040"
TSTZ83-0375-048-50 0.278" 3/8" 0.048"
TSTZ83-0375-048.10 0.278" 3/8" 0.048"
TSTZ83-0500-062-50 3/8" 1/2" 1/16"
TSTZ83-0500-062.10 3/8" 1/2" 1/16"

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Versilon® ETFE Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
