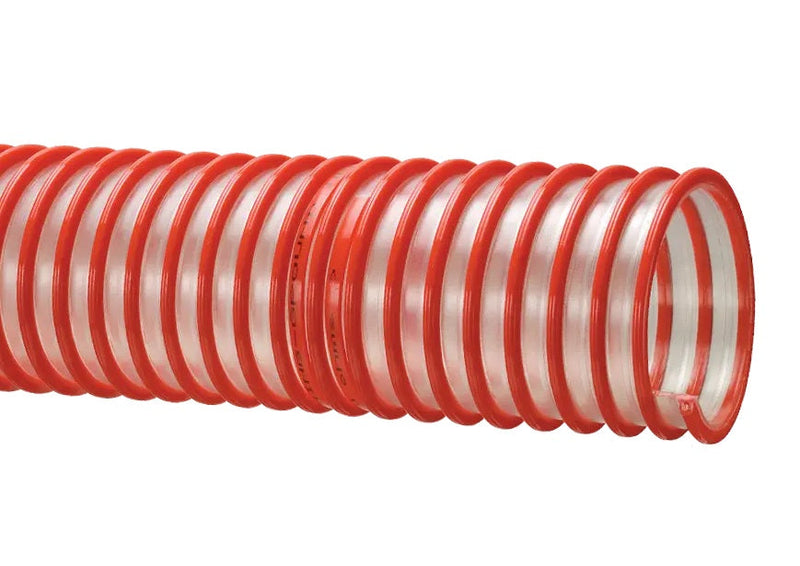

TVHD404X60 Tigerflex® Tigervapor™ HD by Kuriyama | TVHD™ Series | Heavy Duty Vapor Recovery Hose | Polyurethane (TPU) | 4.04" ID | 4.61" OD | 60ft Length

TVHD404X60 Tigerflex® Tigervapor™ HD by Kuriyama | TVHD™ Series | Heavy Duty Vapor Recovery Hose | Polyurethane (TPU) | 4.04" ID | 4.61" OD | 60ft Length

$0.00 - $0.00
$0.00
$1,131.12
$1,131.12 - $1,131.12
$1,131.12
p>Kuriyama of America Inc.
Tigerflex® | Tigervapor™ HD TVHD™ Series | Heavy Duty Vapor Recovery Hose | Polyurethane (TPU)

Designed for tank truck vapor recovery.

Biofuel Compatible.

Made in the USA.


Package Quantity: 60 Foot

Specifications for Variant SKU: TVHD404X60 Kuriyama | 60 |
Brand: Tigervapor, Tigerflex
Series: TVHD Series
Hose Color(s): Orange & Clear/Semi-Clear
Internal Diameter: 4.04in
Outer Diameter: 4.61in
Tubing Construction: TPU
Special Properties: Outer Helix Protection, Ground Wire in Hose
Applications: Tank truck vapor recovery.
Specially designed to handle gasoline, ethanol**, diesel and biodiesel** vapors (Meeting ASTM D5798, D4806 or D6751 criteria).
Tube: Polyurethane (TPU). Reinforcement: Rigid PVC helix. Embedded grounding wire.
Cover: - Service Temperature Range: -40ºF (-40ºC) to +140ºF (+60ºC)
(Actual service temperature range is application dependent)
Specifications: -
What are the Features?
  • Lightweight - much lighter than conventional TPR/rubber hoses.
  • Heavy duty construction - thicker wall for longer hose life.
  • "See-through" construction - for visual confirmation if fuel backs up into the vapor recovery system.
  • Grounding Wire - Durable multi-strand copper wire dissipates static electricity. Physically extract wire from the rigid helix and bond to the metal coupling (or by other means) to ground.+
  • Easy Slide Helix - Rigid counter clockwise helix design protects hose tube from cover wear; allows hose to slide easily over rough surfaces.
  • Biofuel Compatible - Revolutionary polyurethane compound! Specially designed to handle gasoline, ethanol**, diesel and biodiesel** vapors... and still keeps all the other great features and benefits!
  • Non-permeable polyurethane construction - won't swell or become stiff like conventional TPR/rubber hoses. Long life reduces operating costs.
  • Hose ID specifically designed for use with Kuriyama Couplings.
  • Note: OD measured over helix.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
60ft		 Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
TVHD303X100 TVHD303X60 3.03" 77.0mm 3.54" 89.9mm 13 PSI 8 PSI 18 in Hg 11 in Hg 4-1/2" 0.95 lbs
TVHD404X100 TVHD404X60 4.04" 102.6mm 4.61" 117.1mm 11 PSI 7 PSI 13 in Hg 9 in Hg 5-1/2" 1.27 lbs
