Tygon® AAD04127 .040 I.D. x .070 I.D. x .015" Wall (ND 100-80 Non-DEHP) 500' Package Length - Microbore Tubing

AAD04127 Tygon® by Saint Gobain | .040 I.D. x .070 O.D. x .015" Wall | ND 100-80 Non-DEHP | Microbore Tubing | 500' Package Length

Save $17.37 Save $17.37
$237.77
$237.77 - $237.77
$237.77
$220.40
$220.40 - $220.40
$220.40

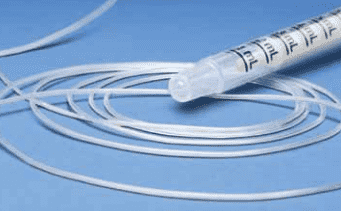

Saint Gobain - Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80

No by the foot sales. This is a Packaged Length product.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AAD04127 Saint Gobain
Brand: Tygon
Series: ND 100-80
Hose Color(s): White/Off-White
Internal Diameter: 0.04in
Outer Diameter: 0.07in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: REACH Compliant, USP - Class VI

SPECIFICATIONS

Application: Draining Blood, Catheters, Intravenous or Intra-arterial Infusion, Surgical and Hospital SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -31 deg. F (-35 deg. C) - 185 deg. F (85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications USP Class VI, REACH Compliant
Literature: Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80 (PDF)
Other Features:
    • High rigidity for kink resistance
    • Compatible with blood
    • Clear, with a glass-smooth inner bore
    • Reduced flexibility for suction applications
    • WARNING: Tygon® Microbore Tubing (NON-DEHP) - Formulation ND 100-80 is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Needle Gauge Length
AAD04091 .010" .030" .010" 30 500ft
AAD04103 .020" .060" .020" 23 500ft
AAD04119 .030" .090" .030" 20-21 500ft
AAD04127 .040" .070" .010" 18-20 500ft
AAD04133 .050" .090" .020" 17-18 500ft

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
