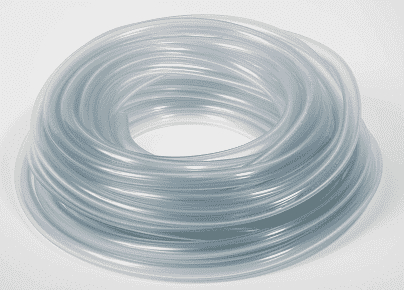

Tygon® ADK00007 1/8" I.D. x 1/4" O.D. x 1/16" Wall (E-1000) 50' Package Length - Ultra-Soft Tubing

ADK00007 Tygon® by Saint Gobain | 1/8" I.D. x 1/4" O.D. x 1/16" Wall | E-1000 | Ultra-Soft Tubing | 50' Package Length

Save $5.98 Save $5.98
$59.79
$59.79 - $59.79
$59.79
$53.81
$53.81 - $53.81
$53.81

Saint Gobain - Tygon® Ultra-Soft Tubing - Formulation E-1000

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ADK00007 Saint Gobain
Brand: Tygon
Series: E-1000
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Synthesis and research set ups, Analytical instruments, Buffer solutions, Peristaltic pumps, Vent and drain lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -67 deg. F (-55 deg. C) - 125 deg. F (52 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, Non-DEHP
Literature: Tygon® Ultra-Soft Tubing - Formulation E-1000 (PDF)
Other Features:
  • Ultra-soft and flexible for lab set-ups
  • Low-temperature resistant for low level cryogenic applications
  • Low durometer for use in low-torque pump application
  • Resistant to corrosive chemicals for laboratory applications
  • Meets FDA requirements for food contact

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ADK00003 1/16" 3/16" 1/16" 1/8" 26 PSI 29.9 in. Hg 50ft
ADK00007 3/8" 1/4" 1/16" 3/8" 16 PSI 29.9 in. Hg 50ft
ADK00012 3/16" 5/16" 1/16" 5/8" 10 PSI 15 in. Hg 50ft
ADK00017 1/4" 3/8" 1/16" 1" 8 PSI 7 in. Hg 50ft
ADK00019 1/4" 1/2" 1/8" 5/8" 14 PSI 29.9 in. Hg 50ft
ADK00022 5/16" 7/16" 1/16" 1-3/8" 7 PSI 5 in. Hg 50ft
ADK00027 3/8" 1/2" 1/16" 1-3/4" 7 PSI 3 in. Hg 50ft
ADK00029 3/8" 5/8" 1/8" 1-1/8" 11 PSI 15 in. Hg 50ft
ADK00036 1/2" 5/8" 1/16" 2-7/8" 6 PSI 2 in. Hg 50ft
ADK00038 1/2" 3/4" 1/8" 1-3/4" 8 PSI 7 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
