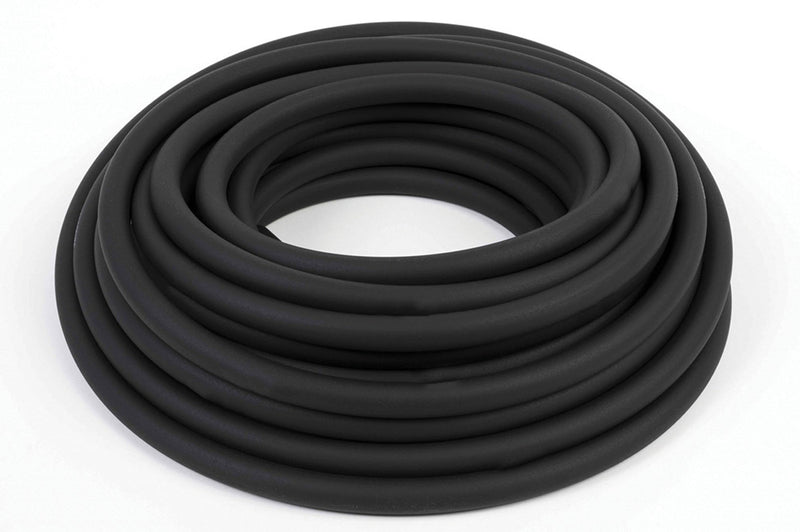

Tygon® AFL00027 Saint Gobain 3/8" I.D. x 1/2" O.D. x 1/16" Wall (A-60-G) 50' Package Length - Industrial Grade Tubing

AFL00027 Tygon® by Saint Gobain | 3/8" I.D. x 1/2" O.D. x 1/16" Wall | A-60-G | Industrial Grade Tubing | 50' Package Length

Save $4.87 Save $4.87
$56.27
$56.27 - $56.27
$56.27
$51.40
$51.40 - $51.40
$51.40

Saint Gobain - Tygon® Industrial Grade Tubing - Formulation A-60-G

Specially formulated for chemical dispensing, Tygon A-60-G tubing outperforms neoprene, EPDM and other general-purpose tubing in test after test, application after application. It will not weaken or crack after years of exposure to heat and ozone, providing longer peristaltic pump life in industrial and institutional cleaning-chemical dispensing applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AFL00027 Saint Gobain
Brand: Tygon
Series: A-60-G
Hose Color(s): Black
Internal Diameter: 0.375in
Outer Diameter: 0.5in
Tubing Construction: Thermoplastic Rubber
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Soap and Disinfectant Dispensing, Printing Ink Transfer, Caustic Dispersing, Plating and Etching Chemicals, Wastewater Sampling, Glass and Windows Wash Systems, Vacuum Pumps, Cable Insulation, Abrasion-Resistant Sleeving SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -75 deg. F (-60 deg. C) - 275 deg. F (135 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Literature: Tygon® Industrial Grade Tubing - Formulation A-60-G (PDF)
Other Features:
    • Superior Weathering
    • Abrasion Resistant
    • Outstanding Flexural Fatigue Resistance
    • Low Gas Permeability Versus Rubber Tubing
    • Ozone and UV Light Resistant
    • WARNING: Tygon® Industrial Grade Tubing - Formulation A-60-G is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Max. Suggested Working Pressure at 180 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 180 deg. F (in. Hg) Length
AFL00003 1/16" 3/16" 1/16" 1/4" 34 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00007 1/8" 1/4" 1/16" 1/2" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00008 1/8" 3/8" 1/8" 1/2" 34 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00012 3/16" 5/16" 1/16" 3/4" 13 PSI 8 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00013 3/16" 3/8" 3/32" 1/2" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00017 1/4" 3/8" 1/16" 7/8" 10 PSI 6 PSI 29.9 in. Hg 15.8 in. Hg 50ft
AFL00018 1/4" 7/16" 3/32" 3/4" 15 PSI 9 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00019 1/4" 1/2" 1/8" 3/4" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00020 1/4" 5/8" 3/16" 1/2" 26 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00022 5/16" 7/16" 1/16" 1-1/4" 8 PSI 5 PSI 20.2 in. Hg 10.1 in. Hg 50ft
AFL00023 5/16" 1/2" 3/32" 1.0" 12 PSI 7 PSI 29.9 in. Hg 25.0 in. Hg 50ft
AFL00026 5/16" 13/16" 1/4" 1/2" 28 PSI 17 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AFL00027 3/8" 1/2" 1/16" 1-3/8" 7 PSI 4 PSI 14.1 in. Hg 7.0 in. Hg 50ft
AFL00028 3/8" 9/16" 3/32" 1-1/2" 10 PSI 6 PSI 29.9 in. Hg 15.0 in. Hg 50ft
AFL00029 3/8" 5/8" 1/8" 1-1/8" 13 PSI 8 PSI 29.9 in. Hg 27.7 in. Hg 50ft
AFL00032 7/16" 9/16" 1/16" 2-1/4" 6 PSI 4 PSI 5.0 in. Hg 0.0 in. Hg 50ft
AFL00036 1/2" 5/8" 1/16" 3.0" 6 PSI 3 PSI 15.0 in. Hg 0.0 in. Hg 50ft
AFL00037 1/2" 11/16" 3/32" 2-1/4" 8 PSI 5 PSI 20.0 in. Hg 10.0 in. Hg 50ft
AFL00038 1/2" 3/4" 1/8" 1-1/8" 10 PSI 6 PSI 29.6 in. Hg 15.6 in. Hg 50ft
AFL00045 5/8" 13/16" 3/32" 3-1/4" 7 PSI 4 PSI 10.0 in. Hg 5.0 in. Hg 50ft
AFL00046 5/8" 7/8" 1/8" 2-3/4" 8 PSI 5 PSI 20.0 in. Hg 9.9 in. Hg 50ft
AFL00053 3/4" 1" 1/8" 3-1/2" 7 PSI 4 PSI 13.9 in. Hg 6.9 in. Hg 50ft
AFL00062 1" 1-1/4" 1/8" 5.0" 6 PSI 3 PSI 5.0 in. Hg 5.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
