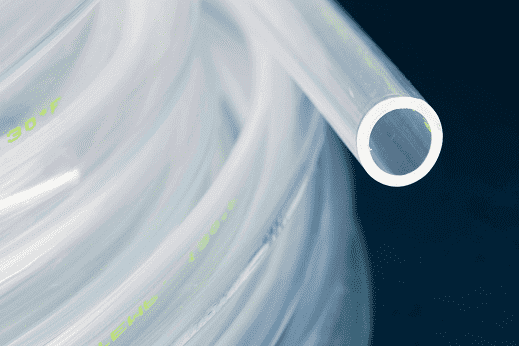

Tygon® AJK00022 Saint Gobain 5/16" I.D. x 7/16" O.D. x 1/16" Wall (Formulation 2375) 50' Package Length - Ultra Chemical Resistant Tubing

  • $84.70
  • (Unit Price: $1.69 per ft.)

SPECIFICATIONS

Application: Fine and Specialty Chemical Production, Batter Acid Filling, Clean and Degreaser Transfer Systems, X-Ray Processing, Paint and Solvent Production, Ink and Printing Fluid Dispensing, Hazardous Materials Handling, Power Generation Sampling and Drain Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -103 deg. F (-78 deg. C) - 130 deg. F (54 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA CFR 177.1520 Criteria for food and beverage use, EU Regulation 10/2011**, NSF 51, REACH
Literature: Tygon® Ultra Chemical Resistant Tubing - Formulation 2375 (PDF)
Other Features:
    • Outstanding Chemical Resistance
    • Does not alter the food media taste
    • Great flexibility and bend radius
    • Non-DEHP for high purity
    • Plasticizer-free for low extractables
    • Safer disposal - releases no harmful and corrosive hydrochloride gas
    • Smoother inner surface - provides better flow and inhibits particulate buildup
    • Low sorption - minimizes cross-contamination
    • Clear tubing for easier and better observation
    • WARNING: Tygon® Ultra Chemical Resistant Tubing - Formulation 2375 is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
AJK00002 1/16" 1/8" 1/32" N/A N/A N/A 50ft
AJK00003 1/16" 3/16" 1/16" 1/4" 50 PSI 29.9 in. Hg 50ft
AJK00004 3/32" 5/32" 1/32" 1/4" 25 PSI 29.9 in. Hg 50ft
AJK00007 1/8" 1/4" 1/16" 1/4" 30 PSI 29.9 in. Hg 50ft
AJK00009 5/32" 7/32" 1/32" 1/4" 20 PSI 29.9 in. Hg 50ft
AJK00012 3/16" 5/16" 1/16" 1/2" 20 PSI 29.9 in. Hg 50ft
AJK00017 1/4" 3/8" 1/16" 3/4" 18 PSI 29.9 in. Hg 50ft
AJK00022 5/16" 7/16" 1/16" 1-1/4" 15 PSI 29.9 in. Hg 50ft
AJK00027 3/8" 1/2" 1/16" 1-1/2" 13 PSI 20.0 in. Hg 50ft
AJK00029 3/8" 5/8" 1/8" 1-1/8" 25 PSI 29.9 in. Hg 50ft
AJK00038 1/2" 3/4" 1/8" 1-1/2" 18 PSI 29.9 in. Hg 50ft
AJK00046 5/8" 7/8" 1/8" 2-1/2" 15 PSI 29.9 in. Hg 50ft
AJK00053 3/4" 1" 1/8" 2-3/4" 13 PSI 20.0 in. Hg 50ft
AJK42064 1" 1-3/8" 3/16" 3-1/4" 14 PSI 25 in. Hg 25ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 ** Not recommended for reuse in higher temperature applications Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
