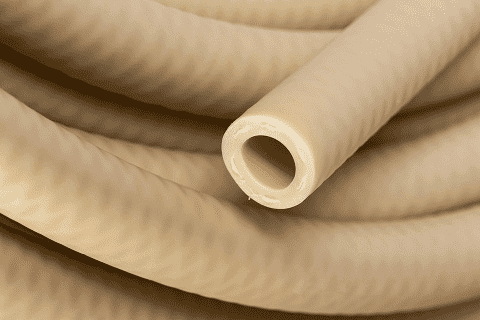

Tygon® APW00054 3/4" I.D. x 1-1/16" O.D. x 5/32" Wall (A-60-F IB) 50' Package Length - Food Process Tubing

APW00054 Tygon® by Saint Gobain | 3/4" I.D. x 1-1/16" O.D. x 5/32" Wall | A-60-F IB | Food Process Tubing | 50' Package Length

Save $46.32 Save $46.32
$463.17
$463.17 - $463.17
$463.17
$416.85
$416.85 - $416.85
$416.85

Saint Gobain - Tygon® Food Process Tubing Formulation A-60-F I.B.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: APW00054 Saint Gobain
Brand: Tygon
Series: A-60-F IB
Hose Color(s): White/Off-White
Internal Diameter: 0.75in
Outer Diameter: 0.9375in
Tubing Construction: Thermoplastic Rubber
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, FDA 21 CFR Part 177.2600

SPECIFICATIONS

Application: Cosmetic Production, Food and Dairy Processing, Hot Beverage Dispensing, Water Purification Lines, Sanitizer Delivery, Pesticide/Fertilizer Delivery, Ink and Toner Feed Lines, Chemical Transfer, Soap Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -75 deg. F (-60 deg. C) - 275 deg. F (135 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.2600, 3-A Sanitary Standards
Literature: Tygon® Food Process Tubing Formulation A-60-F I.B. (PDF)
Other Features:
    • Handles at least 4 times the pressure of non-reinforced tubing.
    • Ozone and UV light resistant.
    • Repeatedly autoclavable.
    • Compatible with a wide range of fluids.
    • WARNING: Tygon® Food Process Tubing (A-60-F I.B.) is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 180 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 180 deg. F (in. Hg) Length
APW00019 1/4" 1/2" 1/8" 3/4" 125 PSI 70 PSI 29.9 in. Hg 29.9 in. Hg 50ft
APW00029 3/8" 5/8" 1/8" 1-1/4" 105 PSI 65 PSI 29.9 in. Hg 20.0 in. Hg 50ft
APW00038 1/2" 3/4" 1/8" 2-1/4" 100 PSI 60 PSI 25.0 in. Hg 15.0 in. Hg 50ft
APW00046 5/8" 7/8" 1/8" 2-1/2" 95 PSI 55 PSI 20.0 in. Hg 10.0 in. Hg 50ft
APW00054 3/4" 1-1/16" 5/32" 3-1/4" 85 PSI 45 PSI 10.0 in. Hg 5.0 in. Hg 50ft
APW00064 1" 1-3/8" 3/16" 5" 75 PSI 40 PSI 12.0 in. Hg 7.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
