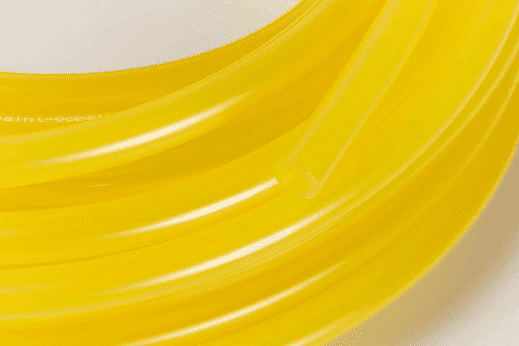

Tygon® AY600017 1/4" ID x 3/8" Wall LP1100 50' Package Length - Low Permeation Fuel Tubing

AY600017 Tygon® by Saint Gobain | 1/4" ID x 3/8" Wall | LP1100 | Low Permeation Fuel Tubing | 50' Package Length

Save $43.68 Save $43.68
$152.88
$152.88 - $152.88
$152.88
$109.20
$109.20 - $109.20
$109.20

Saint Gobain - Tygon® LP1100 Low Permeation Fuel Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AY600017 Saint Gobain
Brand: Tygon
Series: LP1100
Hose Color(s): Yellow
Internal Diameter: 0.25in
Outer Diameter: 0.375in
Tubing Construction: Fluoropolymer
Applicable Specs & Approvals: Applicable EPA Requirements, CARB

SPECIFICATIONS

Application: Small engine fuel lines, Lawn and garden power equipment, Lubricating oil and grease transfer lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -20 deg. F (-28.9 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications EPA, CARB
Literature: Tygon® LP1100 Low Permeation Fuel Tubing (PDF)
Other Features:
  • EPA and CARB certified to meet permeation emission standards of 15g/M2/day
  • Fluoropolymer liner compatible with higher ethanol blend gasoline up to 100%
  • Robust multi-layer design and construction
  • Resistant to swelling, hardening and cracking caused by hydrocarbon-based fluids
  • Highly flexible, easy to install and offers excellent fitting retention
  • Ozone and UV light resistant
  • Conforms to new government regulatory standards for clean air
  • Reduces hydrocarbon vapors escaping or permeating into the atmosphere
  • Protects public health and welfare
  • Reduces photochemical smog
  • Promotes cleaner air and reduces air pollution
  • Greener and environmentally friendlier
  • High abrasion, cut and tear resistance for longer service life
  • WARNING: Tygon® LP1100 Low Permeation Fuel Tubing is not intended as an implant material.
Part Number Inside Diameter (in.) Wall Thickness (in.) Length
AY600700 .080" .140" 50ft
AY600165 3/32" 3/16" 50ft
AY600007 1/8" 1/4" 50ft
AY600012 3/16" 5/16" 50ft
AY600017 1/4" 3/8" 50ft
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
