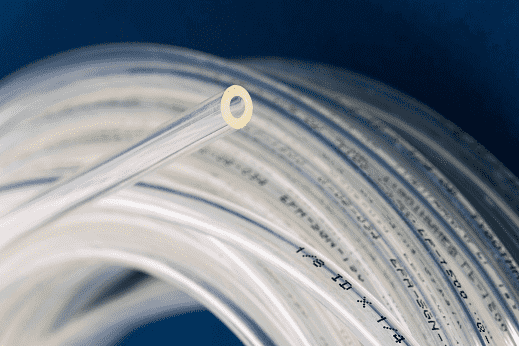

Tygon® AY700007 Saint Gobain 1/8" ID x 1/4" Wall LP1500 50' Package Length - Low Permeation Fuel Tubing

  • $23.32
  • (Unit Price: $0.46 per ft.)

SPECIFICATIONS

Application: Hand-held lawn and garden power equipment, Small utility, farm and construction equipment, Fluid power pumps and motors, Small engine fuel lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) - 185 deg. F (85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications EPA, CARB
Literature: Tygon® LP1500 Low Permeation Fuel Tubing (PDF)
Other Features:
  • EPA and CARB certified to meet permeation emission standards of 15g/M2/day
  • Robust multi-layer design and construction
  • Chemical and Fuel resistant inner layer
  • Ozone and UV light resistant
  • Superior clarity and flexibility
  • Conforms to new government regulatory standards for clean air
  • Highly flexible and kink resistant
  • Clear tubing provides easy observation of fuel flow
  • Higher temperature rating for heat resistance
  • Sub-zero cold temperature impact strength
  • UV Resistant outer jacker to prevent premature aging
  • High abrasion, cut, and tear resistance for longer service life
  • Tight tolerances for better fitting retention and better seal
  • Compatible with E-10 ethanol blend fuel
  • WARNING: Tygon® LP1500 Low Permeation Fuel Tubing is not intended as an implant material.
Part Number Inside Diameter (in.) Wall Thickness (in.) Length
AY700165 3/32" 3/16" 50ft
AY700007 1/8" 1/4" 50ft
AY700017 1/4" 3/8" 50ft
AY700038 1/2" 3/4" 50ft
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
