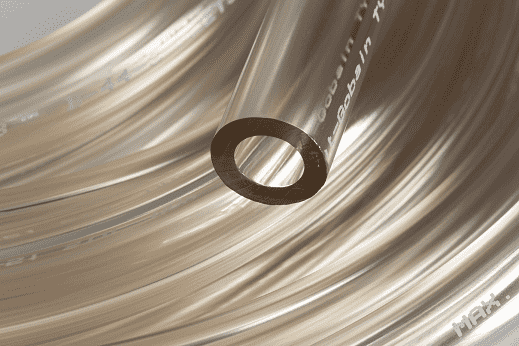

Tygon S3™ AAA00024 Saint Gobain 5/16" ID x 9/16" OD x 1/8" Wall (B-44-4X) 50' Package Length - Food, Milk and Dairy Tubing

  • $99.85
  • (Unit Price: $1.99 per ft.)

SPECIFICATIONS

Application: Aseptic Filling, Condiment Dispensing, Dairy Processing, Vitamin and Flavor Concentrate Systems, Soft-Serve Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -32 deg. F (35 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 175.300, 3-A, NSF Standard 51
Literature: Tygon™ S3 Food, Milk and Dairy Tubing Formulation B-44-4X PDF
Other Features:
    • Smooth, non-porous bore will not trap particulates or promote bacteria growth.
    • Compatible with foods containing a high oil content.
    • Resistant to harsh alkaline cleaners and sanitizers.
    • Excellent alternative to rigid piping systems.
    • Contains no BPA or phthalates
    • WARNING: Tygon™ S3 Food, Milk and Dairy Tubing Formulation B-44-4X is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating (in. Hg) Length
AAA00001 1/32" 3/32" 1/32" 1/8" 100 PSI 29.9 in. Hg 50ft
AAA00002 1/16" 1/8" 1/32" 1/4" 60 PSI 29.9 in. Hg 50ft
AAA00003 1/16" 3/16" 1/16" 1/8" 100 PSI 29.9 in. Hg 50ft
AAA00004 3/32" 5/32" 1/32" 1/2" 43 PSI 29.9 in. Hg 50ft
AAA00006 1/8" 3/16" 1/32" 1/2" 34 PSI 25.0 in. Hg 50ft
AAA00007 1/8" 1/4" 1/16" 3/8" 60 PSI 29.9 in. Hg 50ft
AAA00009 5/32" 7/32" 1/32" 3/4" 28 PSI 16.0 in. Hg 50ft
AAA00010 5/32" 9/32" 1/16" 1/2" 50 PSI 29.9 in. Hg 50ft
AAA00011 3/16" 1/4" 1/32" 1" 25 PSI 11.0 in. Hg 50ft
AAA00012 3/16" 5/16" 1/16" 5/8" 43 PSI 29.9 in. Hg 50ft
AAA00017 1/4" 3/8" 1/16" 1" 34 PSI 25.0 in. Hg 50ft
AAA00018 1/4" 7/16" 3/32" 3/4" 47 PSI 29.9 in. Hg 50ft
AAA00019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 50ft
AAA00022 5/16" 7/16" 1/16" 1-3/8" 28 PSI 16.0 in. Hg 50ft
AAA00023 5/16" 1/2" 3/32" 1" 40 PSI 29.9 in. Hg 50ft
AAA00024 5/16" 9/16" 1/8" 7/8" 50 PSI 29.9 in. Hg 50ft
AAA00027 3/8" 1/2" 1/16" 1-3/4" 25 PSI 11.0 in. Hg 50ft
AAA00028 3/8" 9/16" 3/32" 1-3/8" 34 PSI 25.0 in. Hg 50ft
AAA00029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 50ft
AAA00036 1/2" 5/8" 1/16" 2-7/8" 19 PSI 6.0 in. Hg 50ft
AAA00037 1/2" 11/16" 3/32" 2-1/8" 27 PSI 14.0 in. Hg 50ft
AAA00038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 25.0 in. Hg 50ft
AAA00039 1/2" 13/16" 5/32" 1-1/2" 40 PSI 29.9 in. Hg 50ft
AAA00045 5/8" 13/16" 3/32" 3" 23 PSI 9.0 in. Hg 50ft
AAA00046 5/8" 7/8" 1/8" 2-3/8" 29 PSI 16.0 in. Hg 50ft
AAA00047 5/8" 5/16" 5/32" 2" 35 PSI 26.0 in. Hg 50ft
AAA00053 3/4" 1" 1/8" 3-1/4" 25 PSI 11.0 in. Hg 50ft
AAA00054 3/4" 1-1/16" 5/32" 2-3/4" 30 PSI 18.0 in. Hg 50ft
AAA00055 3/4" 1-1/8" 3/16" 2-3/8" 34 PSI 26.0 in. Hg 50ft
AAA00057 3/4" 1-1/4" 1/4" 2" 43 PSI 29.9 in. Hg 50ft
AAA00059 7/8" 1-1/8" 1/8" 4-1/8" 22 PSI 8.0 in. Hg 50ft
AAA00062 1" 1-1/4" 1/8" 5-1/8" 20 PSI 6.0 in. Hg 50ft
AAA00063 1" 1-5/16" 5/32" 4-3/8" 24 PSI 10 in. Hg 50ft
AAA00064 1" 1-3/8" 3/16" 3-3/4" 27 PSI 14.0 in. Hg 50ft
AAA00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
AAA00067 1-1/8" 1-3/8" 1/8" 6-1/4" 18 PSI 5.0 in. Hg 50ft
AAA00070 1-1/4" 1-5/8" 3/16" 5-1/2" 23 PSI 9.0 in. Hg 50ft
AAA00074 1-1/2" 2" 1/4" 5-7/8" 25 PSI 11.0 in. Hg 50ft
AAA00078 2" 2-1/2" 1/4" 9-3/8" 19 PSI 6.0 in. Hg 50ft
AAA05082 2-1/2" 3" 1/4" 13-3/8" 16 PSI 4.0 in. Hg 20ft
AAA05085 3" 3-1/2" 1/4" 18" 14 PSI 2.0 in. Hg 20ft
AAA06088 4" 5" 1/2" 17" 19 PSI 6.0 in. Hg 10ft
AAA05088 4" 5" 1/2" 17" 19 PSI 6.0 in. Hg 20ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
