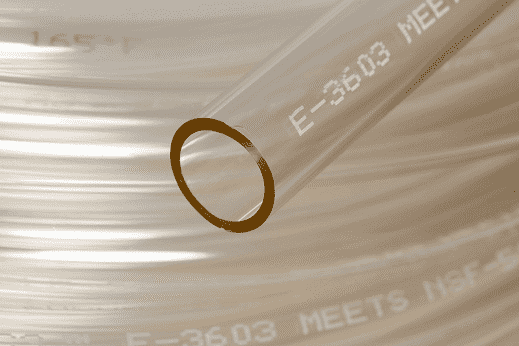

Tygon S3™ ACF00049 Saint Gobain 5/8" I.D. x 1-3/8" O.D. x 3/8" Wall E-3603 Phthalate-free Vaccum Tubing - 50' Package Length

  • $740.21
  • (Unit Price: $14.80 per ft.)

SPECIFICATIONS

Application: General Laboratory, Analytical Instruments, Perstaltic and Vacuum Pumps, Ideal for Condensers, Incubators, Desiccators, Gas Lines and Drain Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -51 deg. F (-46 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR 177.300
Literature: Tygon S3™ Phthalate-free Vaccum Tubing - Formulation E-3603 (PDF)
Other Features:
    • The new bio-based formulation delivers the same excellent performance
    • Outstanding chemical resistance
    • Lot-to-lot consistency for reproducible results
    • Non-oxidizing and non-contaminating
    • Smooth, polished inner wall
    • Slips easily over fittings and grips securely for simple lab set-ups
    • Contains no BPA or phthalates
    • WARNING: Tygon S3™ Phthalate-free Vaccum Tubing - Formulation E-3603 is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ACF00015 3/16" 9/16" 3/16" 1/4" 69 PSI 29.9 in. Hg 50ft
ACF00020 1/4" 5/8" 3/16" 1/2" 53 PSI 29.9 in. Hg 50ft
ACF00030 3/8" 7/8" 1/4" 5/8" 47 PSI 29.9 in. Hg 50ft
ACF00040 1/2" 1-1/8" 5/16" 7/8" 45 PSI 29.9 in. Hg 50ft
ACF00049 5/8" 1-3/8" 3/8" 1" 43 PSI 29.9 in. Hg 50ft
ACF00058 3/4" 1-1/2" 3/8" 1-1/2" 36 PSI 29.9 in. Hg 50ft
ACF00066 1" 2" 1/2" 1-7/8" 36 PSI 29.9 in. Hg 50ft
Metric Sizes
Part Number Inside Diameter (mm) Outside Diameter (mm) Wall Thickness (mm) Min. Bend Radius (mm) Max. Working Pressure at 23 deg. C (73 deg. F) (Bars) Vacuum Rating at 23 deg. C (73 deg. F) (mm Hg) Length
ACF1S1502 2mm 4mm 1mm 7mm 2.5 Bar 760 mm. Hg 15m
ACF1S1517 3mm 5mm 1mm 13mm 1.7 Bar 760 mm. Hg 15m
ACF1S1518 4mm 6mm 1mm 16mm 1.4 Bar 533 mm. Hg 15m
ACF1S1503 5mm 8mm 1.5mm 19mm 1.6 Bar 760 mm. Hg 15m
ACF1S1504 6mm 9mm 1.5mm 22mm 1.4 Bar 559 mm. Hg 15m
ACF1S1505 7mm 10mm 15mm N/A N/A N/A 15m
ACF1S1506 8mm 12mm 2mm 29mm 1.4 Bar 533 mm. Hg 15m
ACF1S1507 10mm 14mm 2mm N/A N/A N/A 15m

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
